A3135MU000E

Sensor	RJ33J4CA0DT
Image Sensor	1/3″CCD
Shutter	Global
Resolution	1280 × 960
Frame Rate	33 fps
Bit Depth	14
Mono/Color	Mono
Pixel Size	3.75 μm × 3.75 μm
Pixel	1.2MP
S/N Ratio	>38dB
Dynamic Range	63dB
Image Format	Mono8/10/10Packed
Binning	Support
ROI	Support
Gain	1~32
Gamma	From 0 to 4, support LUT
Exposure Time	1μS~1S
Trigger Mode	Software Trigger/Hardware Trigger/Free Run Mode
SPC	Support
User Setting	Support two sets of user-defined configurations
Image Buffer	64MB
Port	USB3.0
GPIO Interface	6 pin Hirose: 1x Opto-isolated input, 1x Opto-isolated output, 1 configurable input and output
Lens Mount	C
Power Supply	Power supply via USB connector /DC power supply by Hirose connector, with voltage range from 9V to 24V
Power Consumption	≈2.4W

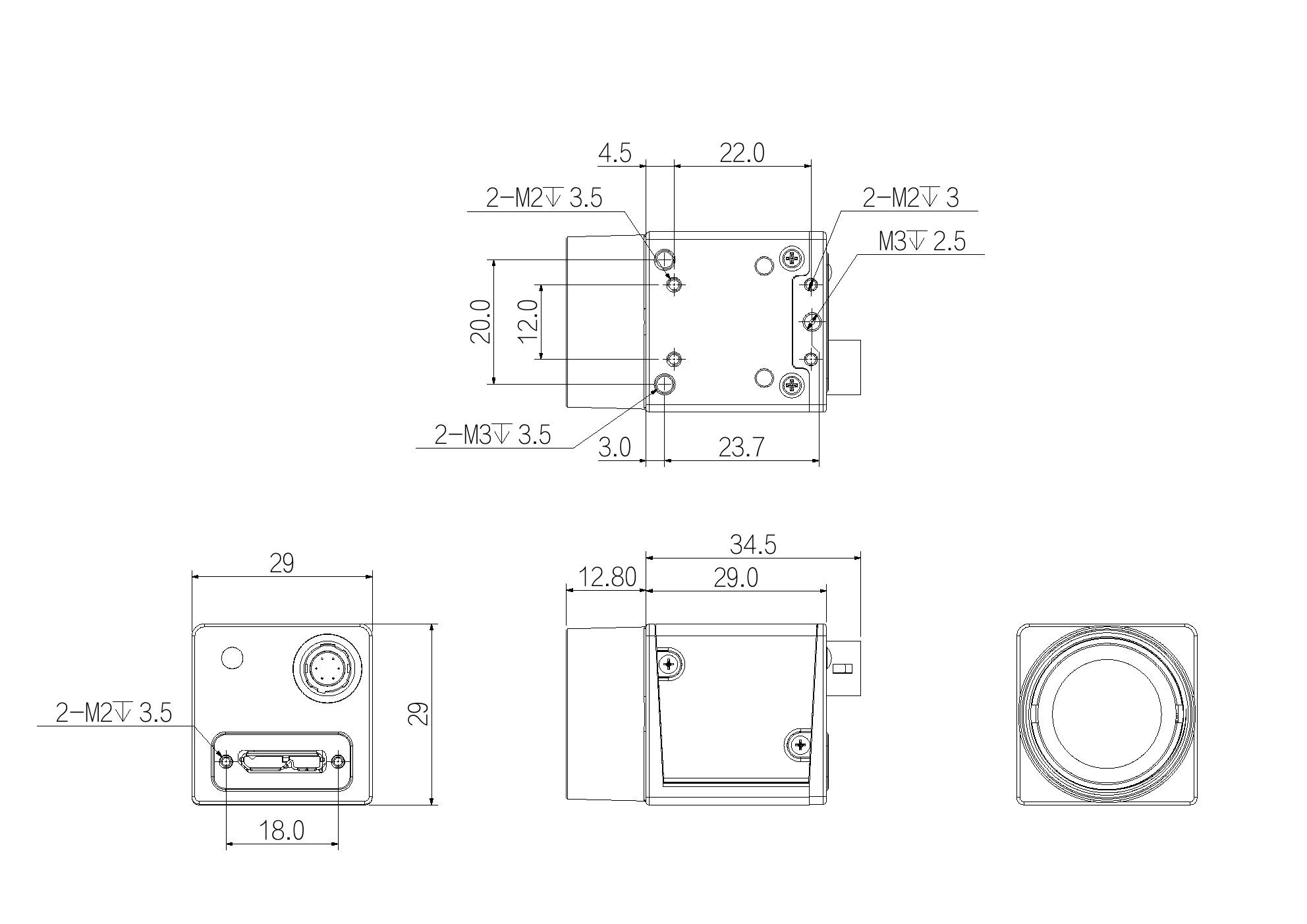

Product Dimensions	29mm×29mm×29mm
Net Weight	68 g
Storage Temperature	-30℃~+80℃
Operating Temperature	-30℃~+50℃

Description

usB3.0 interface, 5Gbps theoretical transfer bandwidth, power supply via usB interface?
Compact size of 29mmx29mmx29mm
128MB on-board cache for data transmission or image resend
Support Software Trigger/Hardware Trigger/Free Run Mode
Support ISP functions including Sharpness/Denoising/Gamma/LUT/BlackLevel Correction/TargetBrightness etc.
Support multiple image data formats output/ROI/Binning/Mirror, etc.?
Compatible with usB3.0 Vision protocol and GenICam standard
Comform to CE, FCC, RoHS

Binning	Support
Bit depth	14
Dynamic range	63dB
Exposure time	1us~1S
Frame rate	33 fps
Gain	1~32
Gamma	From 0 to 4，support LUT
Gpio interface	6 pin Hirose: 1x Opto-isolated input, 1x Opto-isolated output, 1 configurable input and output
Image buffer	64MB
Image format	Mono8/10/10Packed
Image sensor	1/3"CCD
Lens mount	C
Pixel	1.2MP
Pixel size	3.75 um x 3.75 um
Port	usB3.0
Power consumption	≈2.4W
Power supply	Power supply via usB connector /DC power supply by Hirose connector, with voltage range from 9V to 24V
Resolution	1280 x 960
Roi	Support
Sensor	RJ33J4CA0DT
Shutter	Global
Spc	Support
Storage temperature	-30℃~+80℃
Trigger mode	Software Trigger/Hardware Trigger/Free Run Mode
User setting	Support two sets of user-defined configurations
Mono-color	Mono
S/n ratio	>38dB
