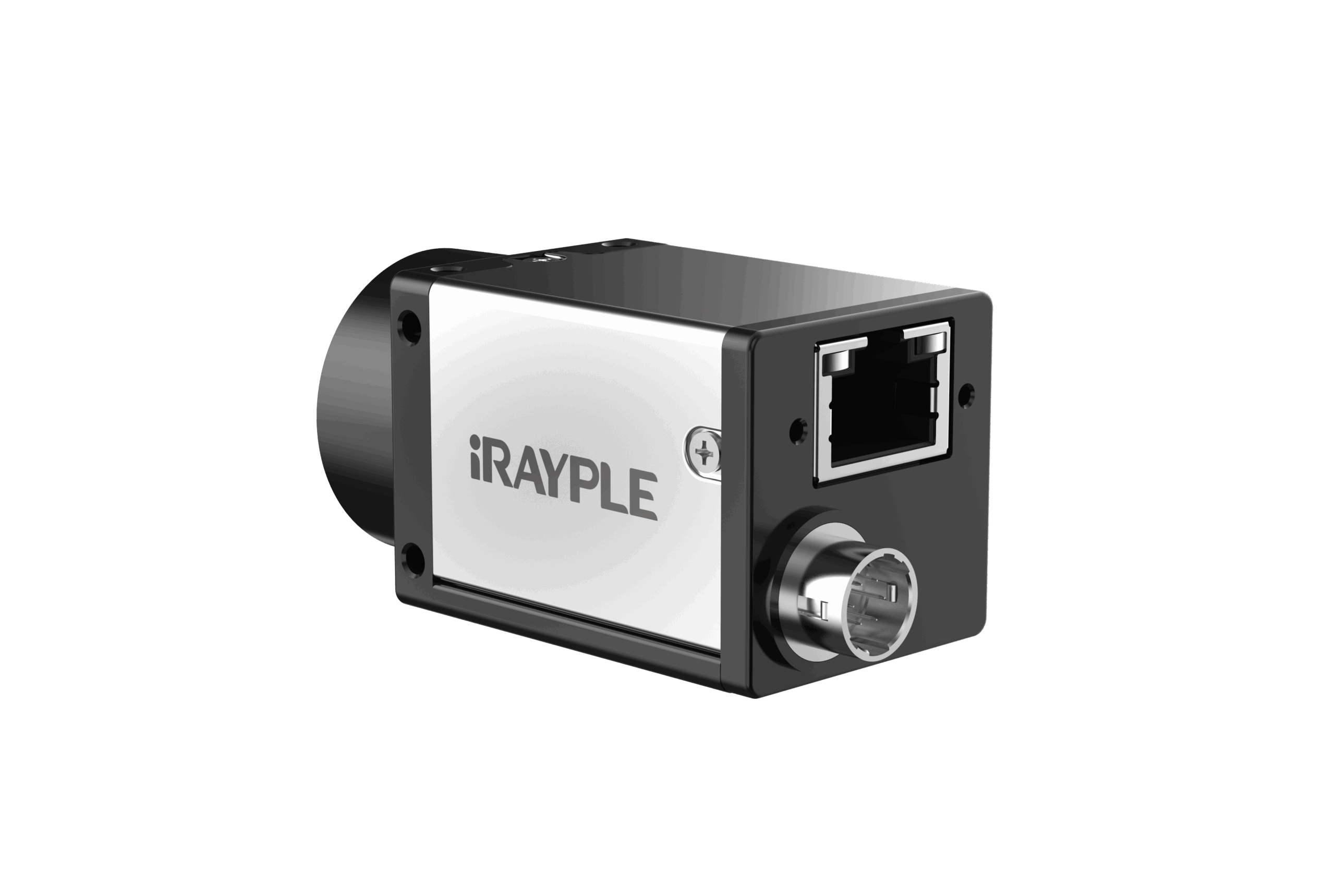

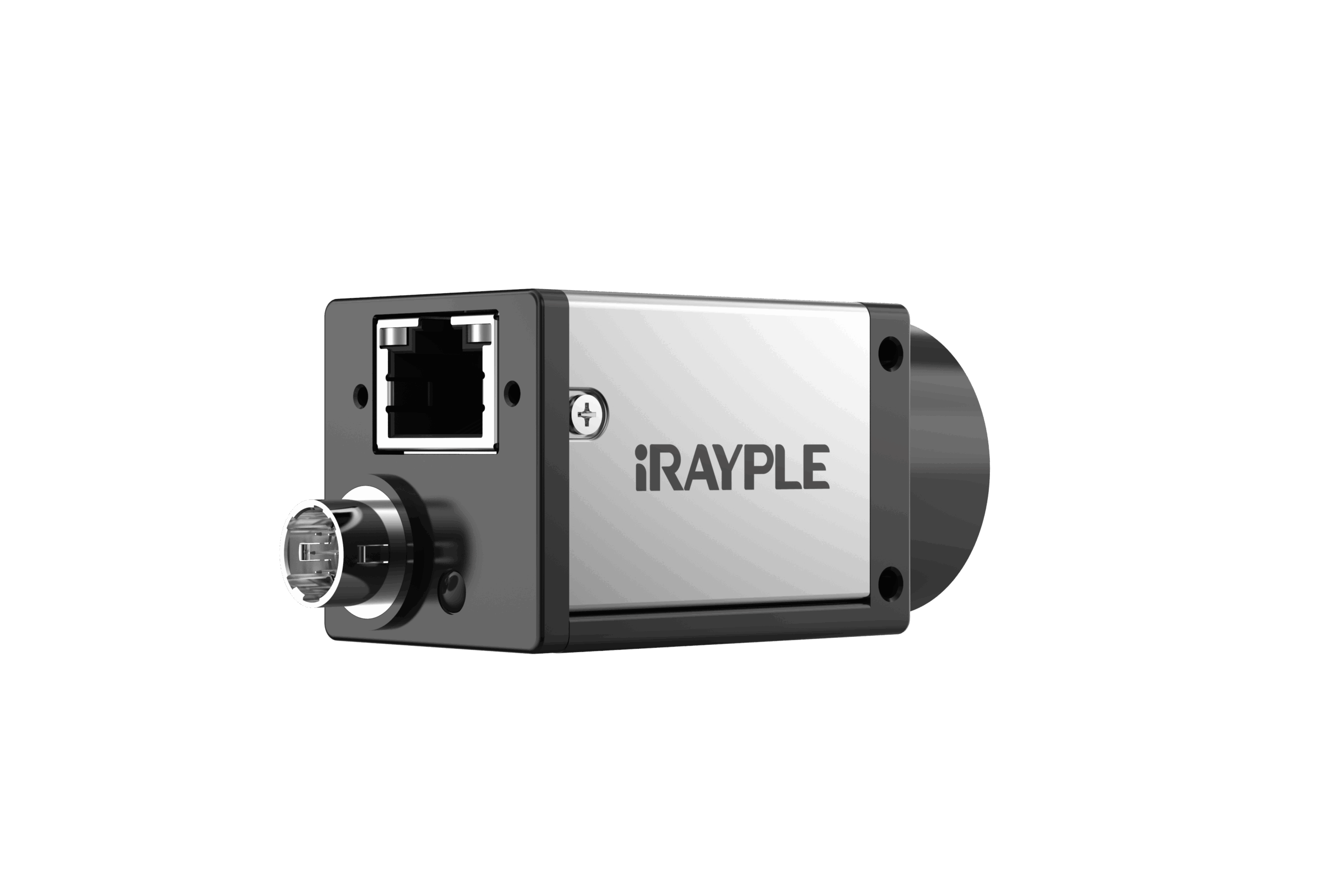

A7A21MG400E

Sensor	XGS12000
Image Sensor	1”CMOS
Shutter	Global
Resolution	4096 × 3072
Frame Rate	9 fps
Bit Depth	12
Mono/Color	Mono
Pixel Size	3.2 μm × 3.2 μm
Pixel	12MP
S/N Ratio	>38dB
Dynamic Range	70dB
Image Format	Mono8/10/10Packed/12/12Packed
Binning	Support
ROI	Support
X Flip	Support
Y Flip	Support
Gain	1~32
Gamma	From 0 to 4, support LUT
Exposure Time	69μS~1S
Trigger Mode	Software Trigger/Hardware Trigger/Free Run Mode
SPC	Support
User Setting	Support two sets of user-defined configurations
Image Buffer	64MB
Port	GigE,PoE
GPIO Interface	1x 6 pin Hirose: 1x Opto-isolated input, 1x Opto-isolated output, 1 configurable input and output
Lens Mount	C-mount
Power Supply	PoE/ DC 9V~24V power supply via Hirose interface
Power Consumption	12V≈3.2W
Product Dimensions	29mm×29mm×42mm (not including lens mount and rear case connector)
Net Weight	88 g
Storage Temperature	-30℃~+80℃
Operating Temperature	0℃~+50℃

Description

Gigabit Ethernet interface, providing 1Gbps bandwidth with a maximum transmission distance of 100m
128MB on-board cache for data transmission or image resend
Support Software Trigger/Hardware Trigger/Free Run Mode
Support ISP functions including Sharpness/Denoising/Gamma/LUT/BlackLevel Correction/TargetBrightness/Contrast etc.
Support multiple image data formats output/ROI/Binning/Mirror, etc.
Conform to GigE Vision V2.0 protocol and GenICam standard
Support PoE power supply, DC 9V~24V wide voltage power supply
Conform to CE, FCC, UL, RoHS

Binning	Support
Bit depth	12
Dynamic range	70dB
Exposure time	69us~1S
Frame rate	9 fps
Gain	1~32
Gamma	From 0 to 4, support LUT
Gpio interface	1x 6 pin Hirose: 1x Opto-isolated input, 1x Opto-isolated output, 1 configurable input and output
Image buffer	64MB
Image format	Mono8/10/10Packed/12/12Packed
Image sensor	1''CMOS
Lens mount	C-mount
Pixel	12MP
Pixel size	3.2 um x 3.2 um
Port	GigE,PoE
Power consumption	12V≈3.2W
Power supply	PoE/ DC 9V~24V power supply via Hirose interface
Resolution	4096 x 3072
Roi	Support
Sensor	XGS12000
Shutter	Global
Spc	Support
Storage temperature	-30℃~+80℃
Trigger mode	Software Trigger/Hardware Trigger/Free Run Mode
User setting	Support two sets of user-defined configurations
X flip	Support
Y flip	Support
Mono-color	Mono
S/n ratio	>38dB
