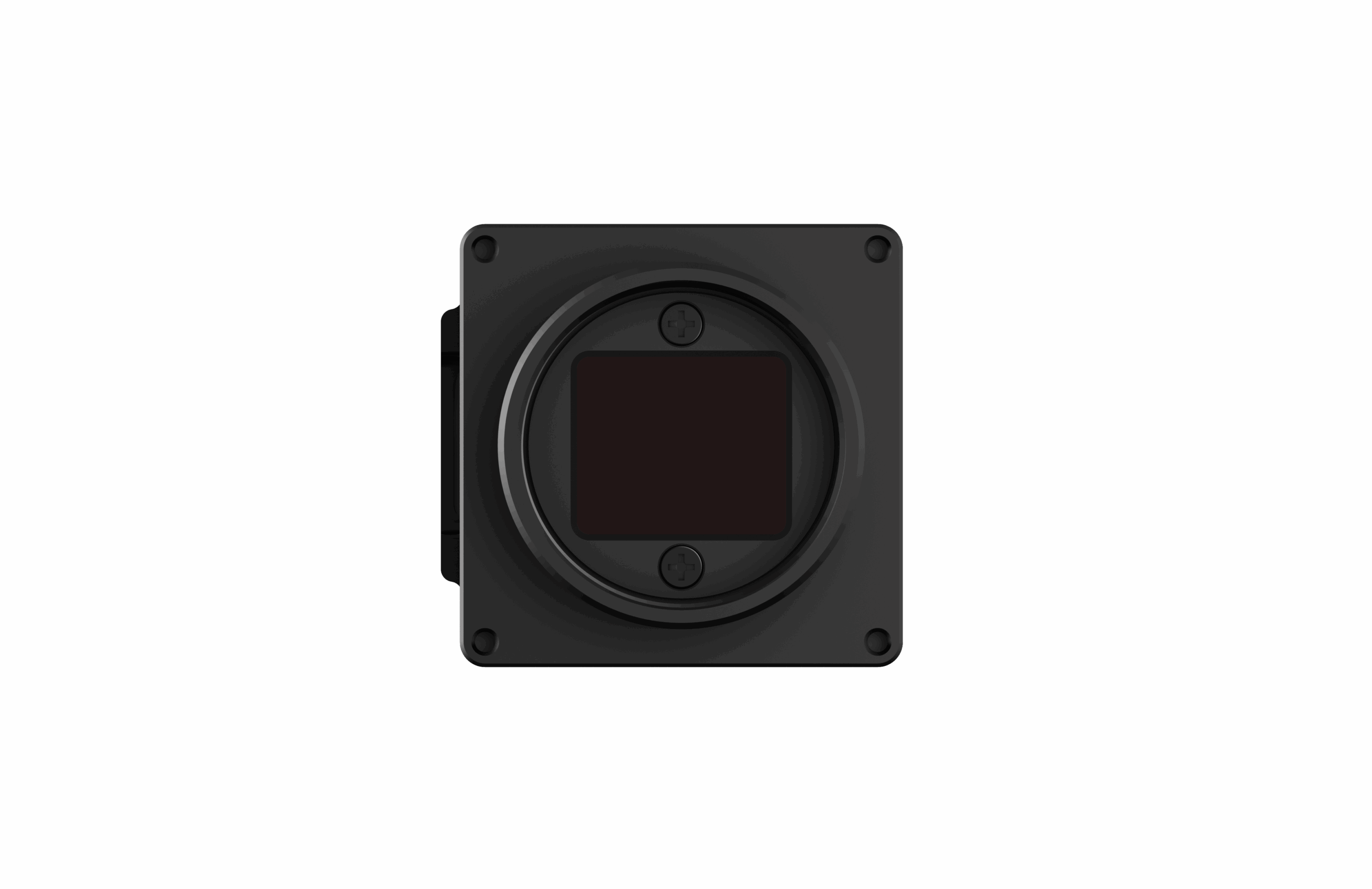

AB7160CU000E

Sensor	IMX273
Image Sensor	1/2.9″CMOS
Shutter	Global
Resolution	1440 × 1080
Frame Rate	249 fps
Bit Depth	12
Mono/Color	Color
Pixel Size	3.45 μm × 3.45 μm
Pixel	3MP
S/N Ratio	>38dB
Dynamic Range	>70dB
Image Format	BayerRG8/10/10Packed;BayerGB8/10/10Packed
ROI	Support
X Flip	Support
Y Flip	Support
Gain	1~32
White Balance	Support
Gamma	Range from 0 to 4, support LUT
Exposure Time	16μS~1S
Trigger Mode	Software Trigger/Hardware Trigger/Free Run Mode
SPC	Support
User Setting	Support two sets of user-defined configurations
Image Buffer	64MB
Port	USB 3.0
GPIO Interface	5-core white plug interface: 1 optocoupler isolated input, 1 optocoupler isolated output, and 1 configurable input/output without optocoupler isolation
Lens Mount	C
Power Supply	5.0V/900mA, powered through USB3.0 interface (compliant with USB3.0 interface specifications)
Power Consumption	≈2.8W
Product Dimensions	35 mm × 35 mm × 19 mm (not including lens mount and rear case connector)
Net Weight	68 g
Storage Temperature	-30℃~+80℃
Operating Temperature	-30℃~+50℃

Description

Compact design of 35mm*35mm*19mm
128MB on-board cache for data transmission or image resend
Support Software Trigger/Hardware Trigger/Free Run Mode
Support ISP functions including Sharpness/Denoising/Gamma/LUT/BlackLevel Correction/TargetBrightness etc.
Color cameras support interpolation, white balance, chroma, saturation, etc.?
Support multiple image data formats output/ROI/Mirror, etc.?
Compatible with usB3.0 Vision protocol and GenICam standard
Comform to CE, FCC, RoHS

Bit depth	12
Dynamic range	>70dB
Exposure time	16us~1S
Frame rate	249 fps
Gain	1~32
Gamma	Range from 0 to 4, support LUT
Gpio interface	5-core white plug interface: 1 optocoupler isolated input, 1 optocoupler isolated output, and 1 configurable input/output without optocoupler isolation
Image buffer	64MB
Image format	BayerRG8/10/10Packed;BayerGB8/10/10Packed
Image sensor	1/2.9"CMOS
Lens mount	C
Pixel	3MP
Pixel size	3.45 um x 3.45 um
Port	usB 3.0
Power consumption	≈2.8W
Power supply	5.0V/900mA, powered through usB3.0 interface (compliant with usB3.0 interface specifications)
Resolution	1440 x 1080
Roi	Support
Sensor	IMX273
Shutter	Global
Spc	Support
Storage temperature	-30℃~+80℃
Trigger mode	Software Trigger/Hardware Trigger/Free Run Mode
User setting	Support two sets of user-defined configurations
White balance	Support
X flip	Support
Y flip	Support
Mono-color	Color
S/n ratio	>38dB
