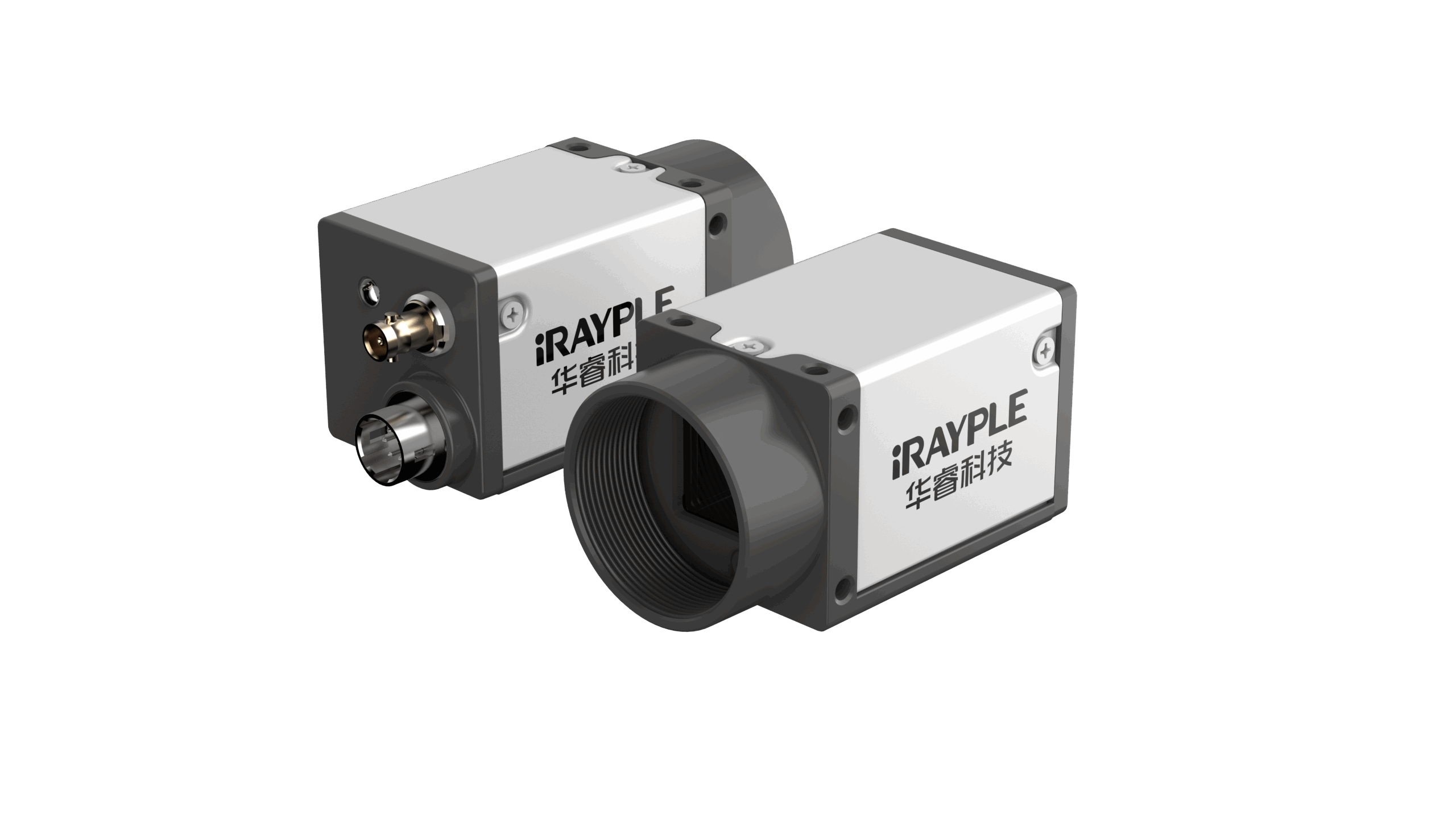

AH5507MP000E

Image Sensor	CMOS
Shutter	Global
Resolution	2448 × 2048
Frame Rate	164fps
Bit Depth	10bit
Mono/Color	Mono
Pixel Size	3.4 μm × 3.4 μm
S/N Ratio	39.3dB
Dynamic Range	66.9dB
Image Format	Mono 8/10/12
ROI	Support
X Flip	Support
Y Flip	Support
Gain	1~32
Exposure Time	1μs~15s
Trigger Mode	Software Trigger/Hardware Trigger/Free Run Mode
User Setting	Support two sets of user-defined configurations

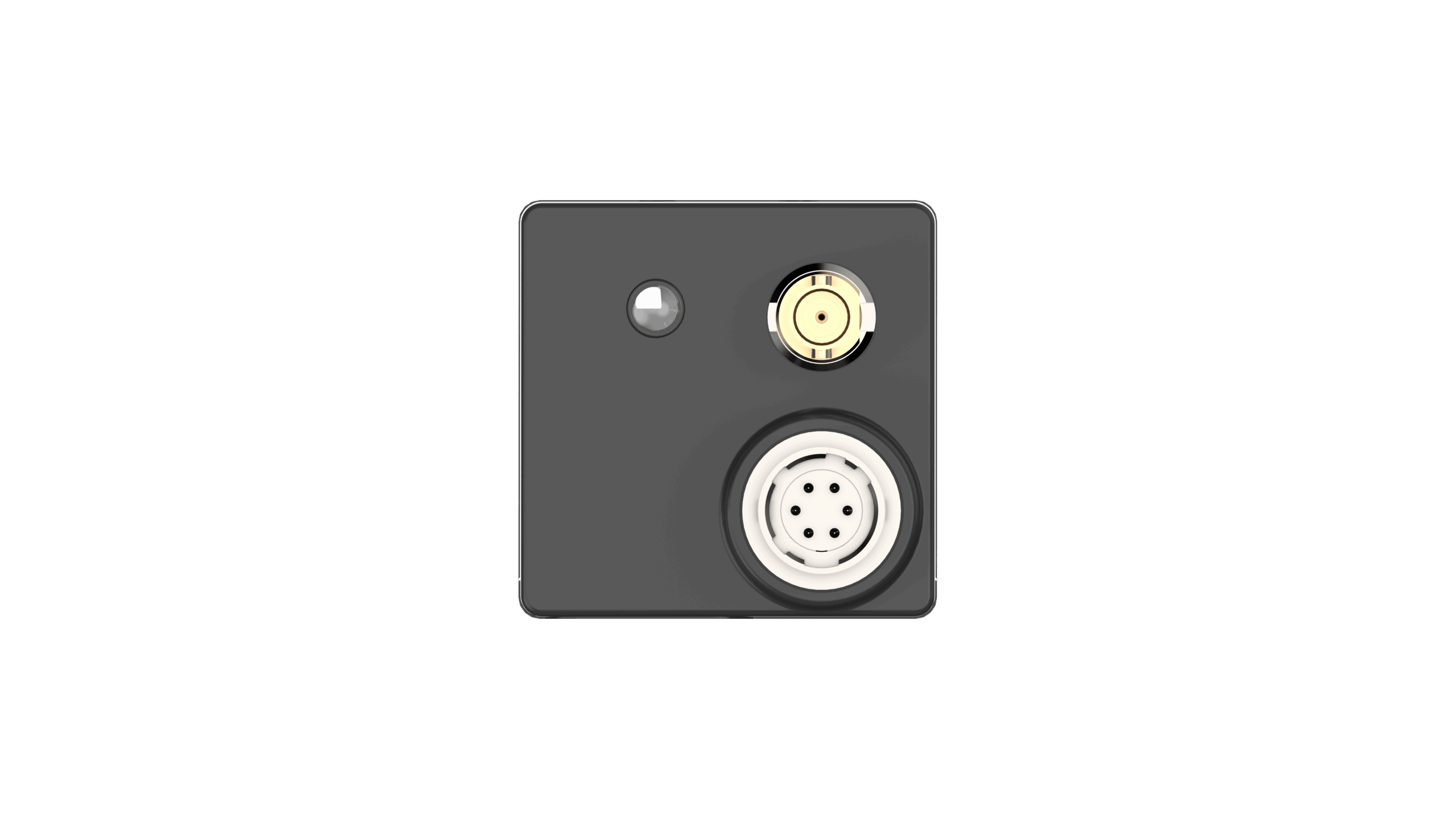

Port	CXP-12
GPIO Interface	6 pin Hirose: 1x Opto-isolated input, 1x Opto-isolated output, 1 configurable input and output

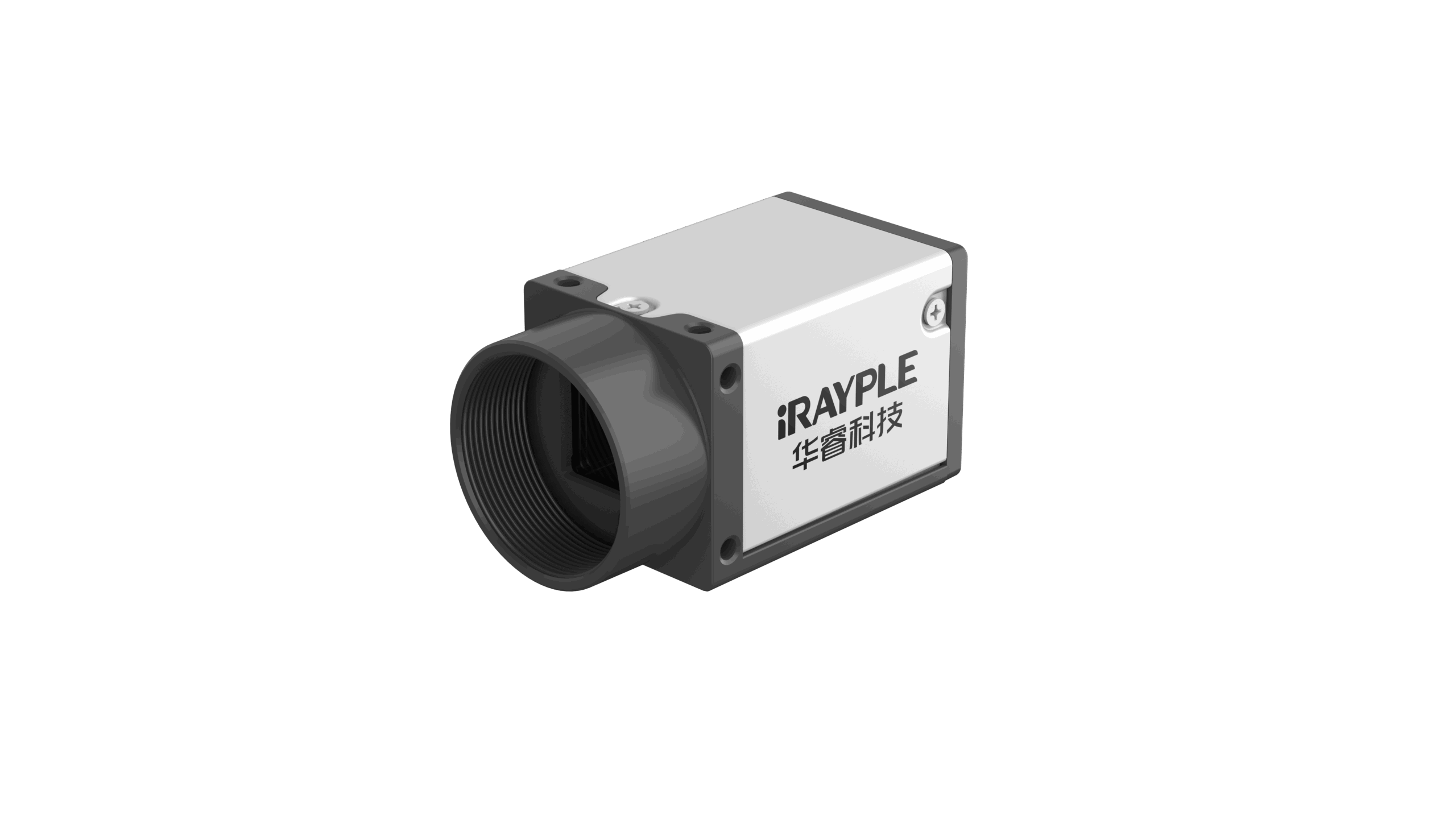

Lens Mount	C-mount
Power Supply	DC 9-24V power supply via 6-pin Hirose interface, support PoCXP
Power Consumption	3.6W @12 VDC

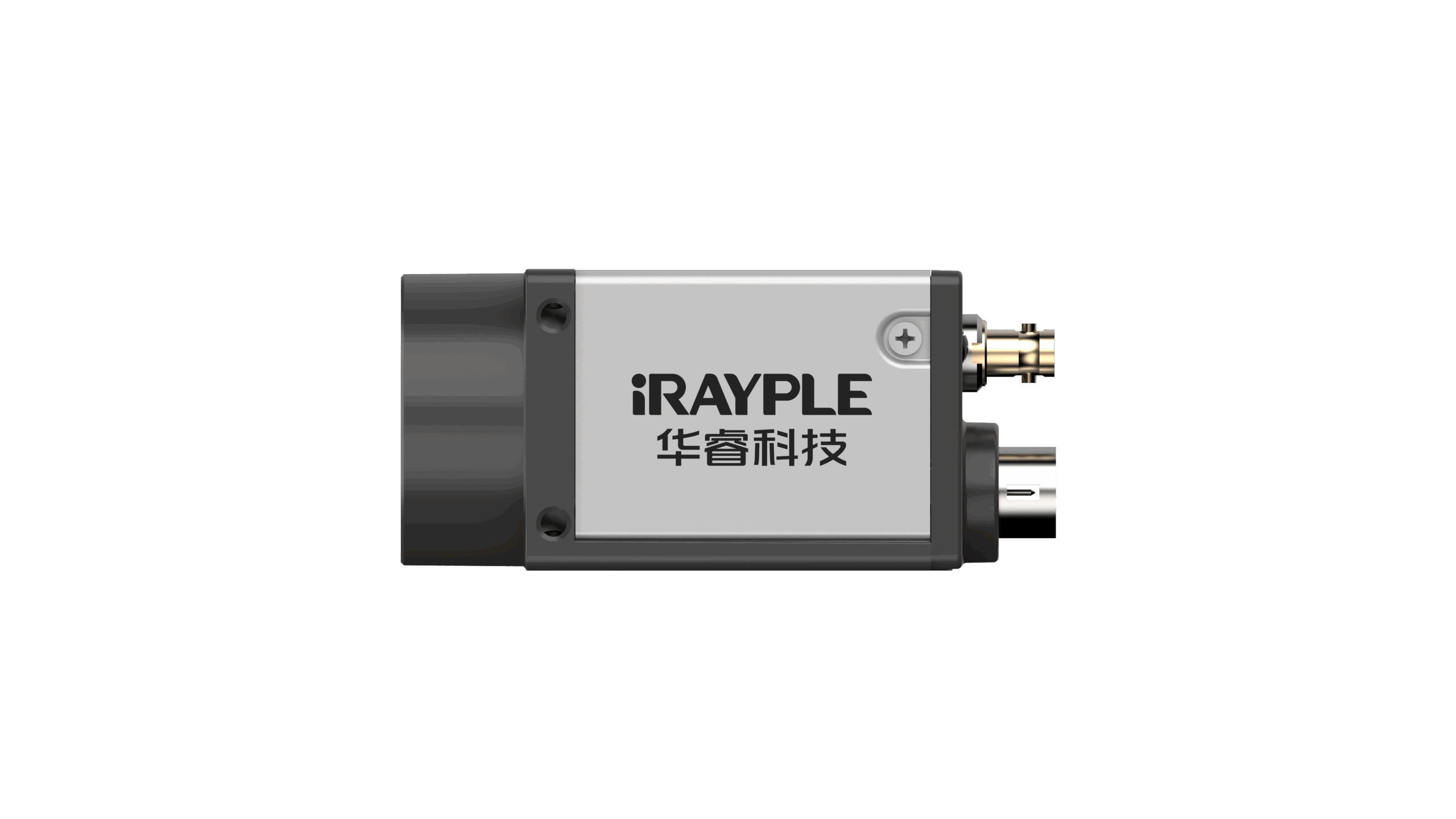

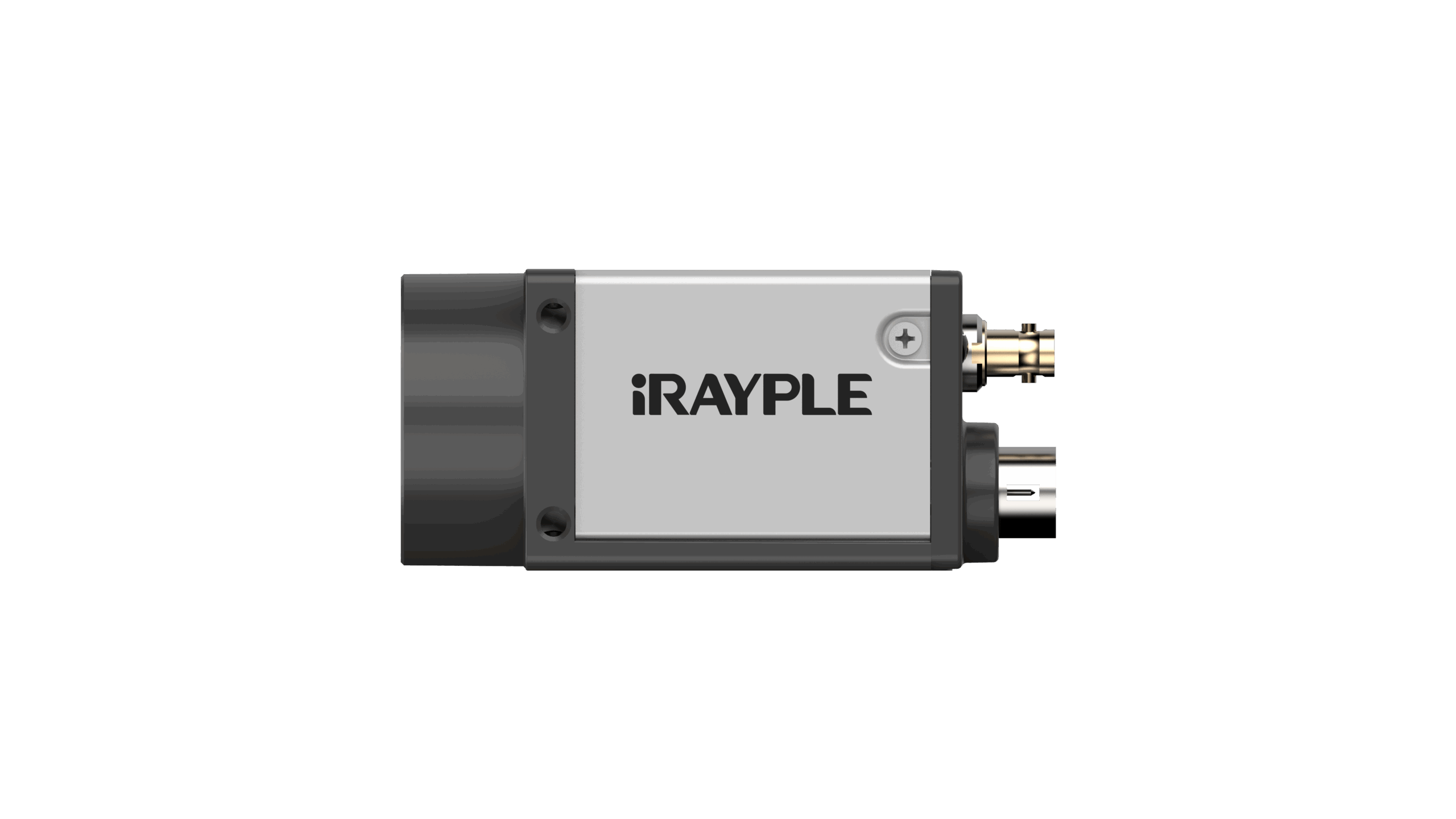

Product Dimensions	29 mm × 29 mm × 42 mm (Non including rear case connector)
Net Weight	103g
Storage Temperature	-30℃~+80℃
Operating Temperature	-30℃~+50℃

Description

Bit depth	10bit
Dynamic range	66.9dB
Exposure time	1us~15s
Frame rate	164fps
Gain	1~32
Gpio interface	6 pin Hirose: 1x Opto-isolated input, 1x Opto-isolated output, 1 configurable input and output
Image format	Mono 8/10/12
Image sensor	CMOS
Lens mount	C-mount
Pixel size	3.4 um x 3.4 um
Port	CXP-12
Power consumption	3.6W @12 VDC
Power supply	DC 9-24V power supply via 6-pin Hirose interface，support PoCXP
Resolution	2448 x 2048
Roi	Support
Shutter	Global
Storage temperature	-30℃~+80℃
Trigger mode	Software Trigger/Hardware Trigger/Free Run Mode
User setting	Support two sets of user-defined configurations
X flip	Support
Y flip	Support
Mono-color	Mono
S/n ratio	39.3dB
