AH5A09MG200E

Sensor	HR
Image Sensor	1″CMOS
Shutter	Global
Resolution	4096×2460
Frame Rate	11.9 fps（18 fps@Compression Mode Burst)
Bit Depth	12
Mono/Color	Mono
Pixel Size	3.45 μm × 3.45 μm
Pixel	10.0 MP
S/N Ratio	43 dB
Dynamic Range	60 dB
Image Format	Mono8/10/10Packed/Mono12/Mono12Packed
Binning	off/onebytwo/twobyone/twobytwo/onebyfour/fourbyone/twobyfour/fourbytwo/fourbyfour/ThreebyThree/onebySix/SixbyOne/SixbySix
ROI	Support
X Flip	Support
Y Flip	Support
Gain	1～32X
Gamma	From 0 to 3.99998, support LUT
Exposure Time	UE: 60 μs ~ 10 sec
Trigger Mode	Software Trigger/Hardware Trigger/Free Run Mode
SPC	Support
User Setting	Support three sets of user-defined configurations
Image Buffer	256MB
Port	GigE, PoE

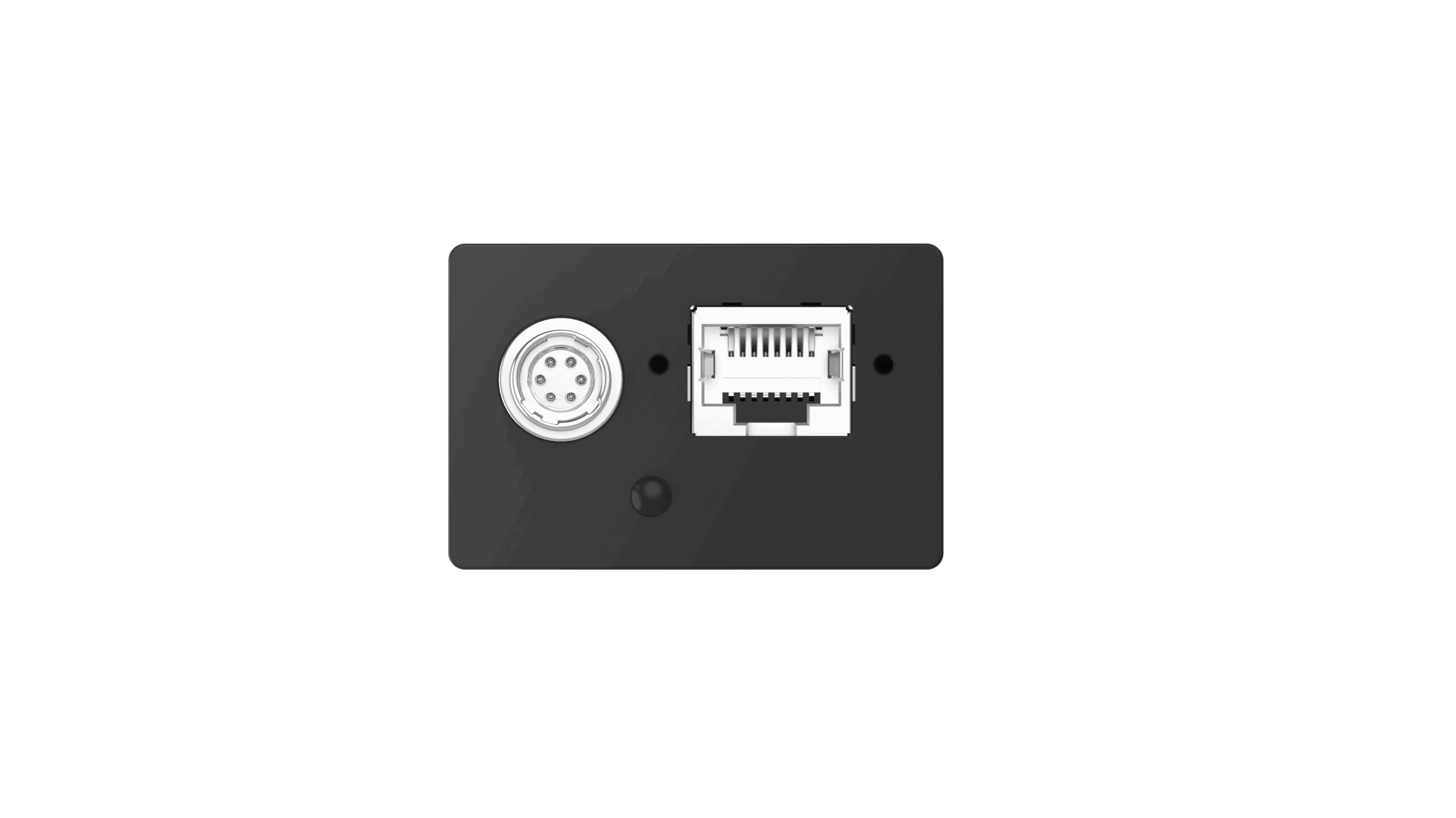

GPIO Interface	1× 6 pin Hirose: 1× Opto-isolated input, 1× Opto-isolated output, 1 configurable input and output
Lens Mount	C-mount
Power Supply	PoE/ DC 9V~24V power supply via Hirose interface
Power Consumption	12 VDC≈2.15W(Typ. )
Product Dimensions	29 mm×44 mm×58 mm (not including lens mount and rear case connector)
Net Weight	140 g
Storage Temperature	-30℃～+80℃
Operating Temperature	0℃～+50℃

Description

Gigabit Ethernet interface, providing 1Gbps bandwidth with a maximum transmission distance of 100m
256MB on-board cache for data transmission or image resend
Support Software Trigger/Hardware Trigger/Free Run Mode
Support ISP functions including Gamma/LUT/BlackLevel Correction/TargetBrightness/Contrast,FFC,Denoising Sharpness etc.
Support multiple image data formats output/ROI/Binning(Including Pixel arbitrary scaling)/Mirror/ AutoFunction/Compress/Sequencer etc.
Conform to GigE Vision V2.0 protocol and GenICam standard
Conform to CE/UKCA/UL/KC,RoHS

Binning	off/onebytwo/twobyone/twobytwo/onebyfour/fourbyone/twobyfour/fourbytwo/fourbyfour/ThreebyThree/onebySix/SixbyOne/SixbySix
Bit depth	12
Dynamic range	60 dB
Exposure time	UE: 60 us ~ 10 sec
Frame rate	11.9 fps（18 fps@Compression Mode Burst)
Gain	1~32X
Gamma	From 0 to 3.99998, support LUT
Gpio interface	1x 6 pin Hirose: 1x Opto-isolated input, 1x Opto-isolated output, 1 configurable input and output
Image buffer	256MB
Image format	Mono8/10/10Packed/Mono12/Mono12Packed
Image sensor	1"CMOS
Lens mount	C-mount
Pixel	10.0 MP
Pixel size	3.45 um x 3.45 um
Port	GigE, PoE
Power consumption	12 VDC≈2.15W(Typ. )
Power supply	PoE/ DC 9V~24V power supply via Hirose interface
Resolution	4096×2460
Roi	Support
Sensor	HR
Shutter	Global
Spc	Support
Storage temperature	-30℃~+80℃
Trigger mode	Software Trigger/Hardware Trigger/Free Run Mode
User setting	Support three sets of user-defined configurations
X flip	Support
Y flip	Support
Mono-color	Mono
S/n ratio	43 dB
