AH7900CU000E

Sensor	IMX267
Image Sensor	1″CMOS
Shutter	Global
Resolution	4096 × 2160
Frame Rate	41.6 fps @4096 × 2160 Bayer RG 8
Bit Depth	12
Mono/Color	Color
Pixel Size	3.45 μm × 3.45 μm
Pixel	9.0 MP
S/N Ratio	40 dB
Dynamic Range	70.6 dB
Image Format	Mono 8/10/12, Bayer RG 8/10/10Packed/12/12Packed,YUV422_8_UYVY,YUV422_8,RGB8,BGR8
Binning	off/onebytwo/twobyone/twobytwo/onebyfour/fourbyone/twobyfour/fourbytwo/fourbyfour/ThreebyThree
ROI	Support
X Flip	Support
Y Flip	Support
Gain	1～32X
Gamma	From 0 to 3.99998, support LUT
Exposure Time	SE: 1 μs ~ 14 μs UE: 15 μs ~ 10 sec
Trigger Mode	Software Trigger/Hardware Trigger/Free Run Mode
SPC	Support
User Setting	Support three sets of user-defined configurations
Image Buffer	256MB
Port	USB 3.0
GPIO Interface	1× 6 pin Hirose: 1× Opto-isolated input, 1× Opto-isolated output, 1 configurable input and output
Lens Mount	C-mount
Power Supply	Power supply via USB connector /DC power supply by Hirose connector, with voltage range from 9V to 24V
Power Consumption	≈3.7W(USB3.0 provide power supply)

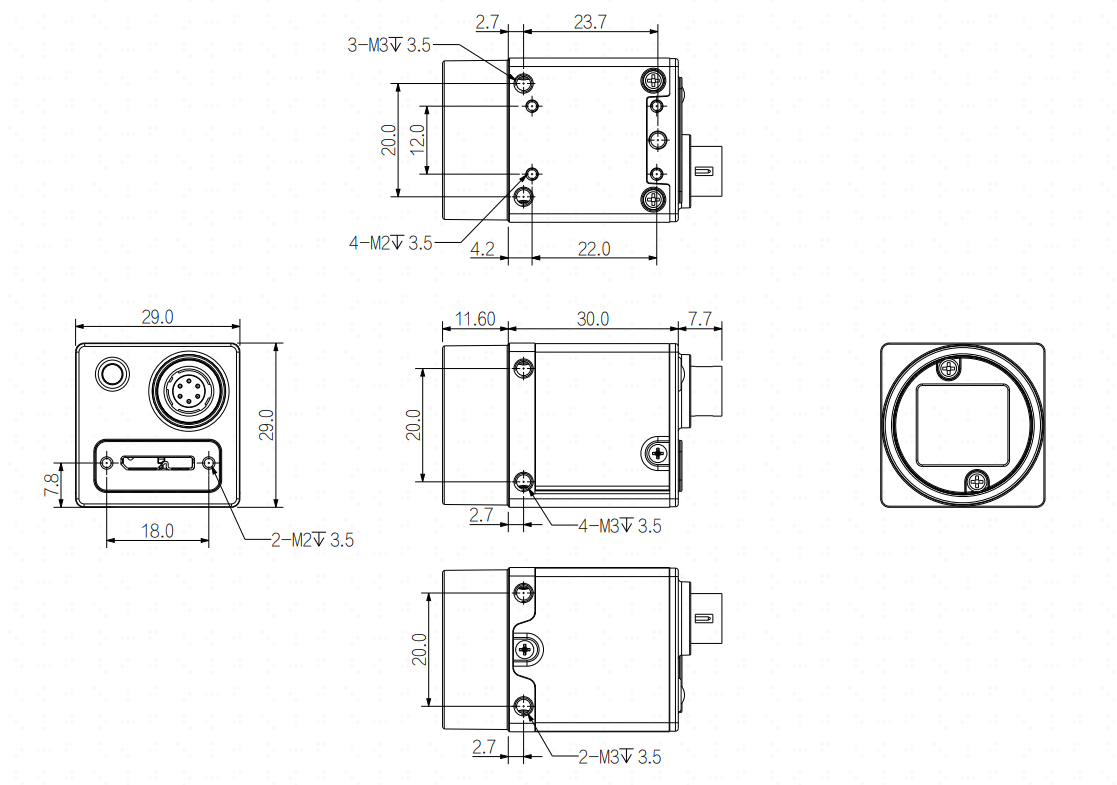

Product Dimensions	29 mm×29 mm×30 mm (not including lens mount and rear case connector)
Net Weight	Approx 85g
Storage Temperature	-30℃~+80℃
Operating Temperature	-30℃~+50℃

Description

usB3.0 interface, 5Gbps theoretical transfer bandwidth, power supply via usB interface?
Compact size of 29mmx29mmx30mm
256MB on-board cache for data transmission or image resend
Support Software Trigger/Hardware Trigger/Free Run Mode
Support ISP functions including Gamma,LUT,BlackLevel ,Correction,TargetBrightness,Contrast,FFC,Denoising Sharpness,BalanceWhite,CCM,ColorAdjustment,Multi-color temperature adjustment, multi-function interpolation adjustment etc.
Support multiple image data formats output,ROI,Binning(Including Pixel arbitrary scaling),Mirror, AutoFunction,Sequencer? Gain?Exposure? etc.
Compatible with usB3.0 Vision protocol and GenICam standard
Conform to CE/UKCA/UL/KC,RoHS

Binning	off/onebytwo/twobyone/twobytwo/onebyfour/fourbyone/twobyfour/fourbytwo/fourbyfour/ThreebyThree
Bit depth	12
Dynamic range	70.6 dB
Exposure time	SE: 1 us ~ 14 us UE: 15 us ~ 10 sec
Frame rate	41.6 fps @4096 x 2160 Bayer RG 8
Gain	1~32X
Gamma	From 0 to 3.99998, support LUT
Gpio interface	1x 6 pin Hirose: 1x Opto-isolated input, 1x Opto-isolated output, 1 configurable input and output
Image buffer	256MB
Image format	Mono 8/10/12, Bayer RG 8/10/10Packed/12/12Packed,YUV422_8_UYVY,YUV422_8,RGB8,BGR8
Image sensor	1"CMOS
Lens mount	C-mount
Pixel	9.0 MP
Pixel size	3.45 um x 3.45 um
Port	usB 3.0
Power consumption	≈3.7W(usB3.0 provide power supply)
Power supply	Power supply via usB connector /DC power supply by Hirose connector, with voltage range from 9V to 24V
Resolution	4096 x 2160
Roi	Support
Sensor	IMX267
Shutter	Global
Spc	Support
Storage temperature	-30℃~+80℃
Trigger mode	Software Trigger/Hardware Trigger/Free Run Mode
User setting	Support three sets of user-defined configurations
X flip	Support
Y flip	Support
Mono-color	Color
S/n ratio	40 dB
