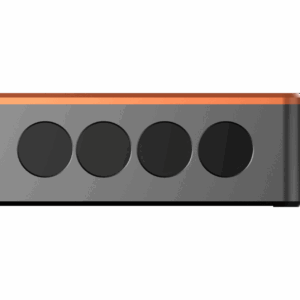

D7200MG500E

Series	7000 Series
Model	D7200MG500E
Max. Frame rate	700 fps
Trigger Mode	FreeRun, External Trigger, Coder Trigger (support trigger signal input with up to 100 KHZ).
Software	MV Viewer, Volume3D
Certifications	CE, BIS
Near FoV	700 mm
Far FoV	2050 mm
Clearance Distance	230 mm
Measuring Range	500 mm
Measuring Accuracy	5 mm × 5 mm × 5 mm (regular object)
Max. Operating Speed	3.5 m/s
Data Type	Point Cloud, Dimensions, Volume (integral and bounding box), Top Surface Coordinates.
Laser Grade	Class 3B
Wavelength	808 nm
Connector	Two industrial-grade M12 connectors, including Ethernet interface and I/O interface.
Network Port	Gigabit Network
GPIO Interface	I/O interface with 12-pin, including opto-isolated input × 3 (Line0/1/2), opto-isolated output × 2 (Line3/4), RS-232 serial port × 1.
Communication protocol	SDK, TCPServer, TCPClient, Profinet
LED Indicator	Status, Network, Laser
Power Supply	Support wide voltage input with 12 VDC~24 VDC, and can be adaptive to different industrial voltage environments with 12 VDC or 24 VDC.
Power Consumption	< 20 W
Product Dimensions	313 mm × 175 mm × 68 mm
Net Weight	About 2 kg
Protection	IP65
Operating Temperature	-10℃ to 50℃ (12℉ to 122℉)
Operating Humidity	20% to 85%RH, Non-condensing
Storage Temperature	-30℃ to 80℃ (-22℉ to 176℉)

Description

Millimeter-level 3D measurement results with high output speed (5 mm accuracy).
Gigabit network makes data transmission efficient and stable.
Narrow-band filter design with powerful anti-interference performance.
Built-in aviation connector with anti-dust and light rainproof design.
Support result output in point-cloud, dimensions, volume (integral and bounding box), top surface coordinates.

Connector	Two industrial-grade M12 connectors, including Ethernet interface and I/O interface.
Gpio interface	I/O interface with 12-pin, including opto-isolated input x 3 (Line0/1/2), opto-isolated output x 2 (Line3/4), RS-232 serial port x 1.
Power consumption	< 20 W
Power supply	Support wide voltage input with 12 VDC~24 VDC, and can be adaptive to different industrial voltage environments with 12 VDC or 24 VDC.
Storage temperature	-30℃ to 80℃ (-22℉ to 176℉)
Trigger mode	FreeRun, External Trigger, Coder Trigger (support trigger signal input with up to 100 KHZ).
Max. frame rate	700 fps
Software	MV Viewer, Volume3D
Certifications	CE, BIS
Max. operating speed	3.5 m/s
Network port	Gigabit Network
Communication protocol	SDK, TCPServer, TCPClient, Profinet
Led indicator	Status, Network, Laser
Protection	IP65
Operating humidity	20% to 85%RH, Non-condensing
Near fov	700 mm
Far fov	2050 mm
Data type	Point Cloud, Dimensions, Volume (integral and bounding box), Top Surface Coordinates.
Laser grade	Class 3B
Clearance distance	230 mm
Measuring range	500 mm
Measuring accuracy	5 mm x 5 mm x 5 mm (regular object)
Wavelength	808 nm
