Description
- Support connect max to 4 cameras simultaneously
- Support max 6700MB/s bandwidth

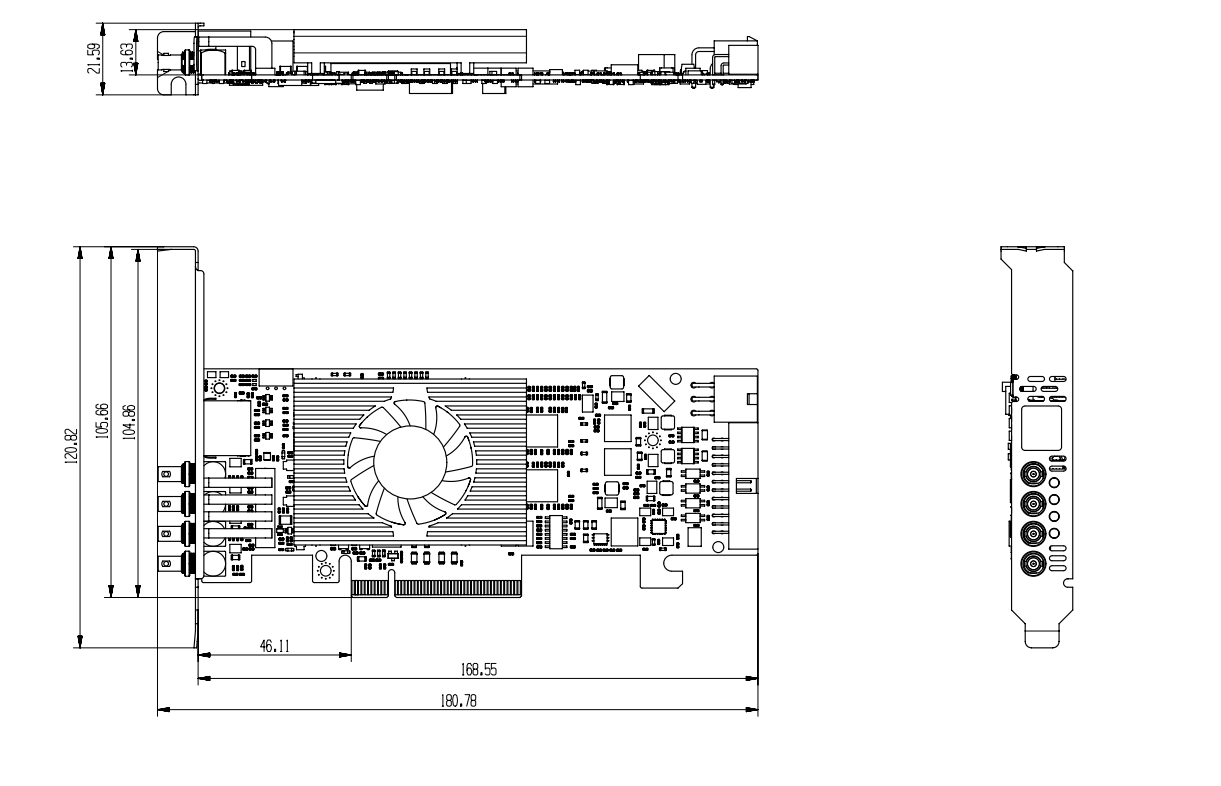

Dimensions
GX3-12HD40
| Transfer Rate | 1.25/2.5/3.125/5/6.25/10/12.5Gbps?CXP-1/2/3/5/6/10/12? |
| Indicator Light | Four LED indicators, show the port status of DIN 1.0/2.3 |
| Interface | 4xMicro-BNC |
| I/O Lines | On Board IO? 4X Opto-isolated Input (DIN) Extend IO? 4X Opto-isolated Input (DIN) 2X Opto-isolated Output (DOUT) 2X TTL input/ouput |
| Connector | 1X RJ45 connector 12-pin 2-row 2.54mm pitch pin header |
| Type | CXP-12 Frame Grabber |
| Model | GX3-12HD40 |
| Number of Channels | 4 Channels |
| Protocol | CoaXPress 1.1/2.0 |
| Pixel Format | Mono 8/10/12/16 Bayer 8/10/12/16 RGB 8/10/12/16 YCbCr 8/10/12/16 |
| On-board Memory | 2GB DDR4-2400 |
| Camera Compatibility | CXP-12 connector industrial camera |
| Number of Cameras | Max 4 cameras |
| Software | Mvviewer |
| Operating System | Windows 10/11/Server 2019(x64) |
| Power Supply | PCIE power supply: The frame grabber is powered by PCIE; External power supply: The on-board 6 Pin PEG connector must be connected when powering the camera with the POCXP, provide a total power of up to 24W. |
| Power Consumption | 20 W |
| Product Dimensions | 167.5mmx68.9mmx21.6mm |
| Net Weight | 150g |
| Operating Temperature | 0~50? |
| Operating Humidity | 10% ~ 90%RH ,non-condensing |
| Storage Temperature | -20~60? |
| Storage Humidity | 10% ~ 90%RH ,non-condensing |
| Host Bus Standard | PCIe 3.0 (Gen 3) X8 |
| Delivery bandwidth | 6700MB/s(Sustained delivery bandwidth) |
Additional information
| Connector | 1X RJ45 connector 12-pin 2-row 2.54mm pitch pin header |
|---|---|
| Interface | 4xMicro-BNC |
| Operating humidity | 10% ~ 90%RH ,non-condensing |
| Power consumption | 20 W |
| Power supply | |
| Product type | CXP-12 Frame Grabber |
| Software | Mvviewer |
| Storage temperature | -20~60℃ |
| Number of channels | 4 channels |
| Protocol | CoaXPress 1.1/2.0 |
| Camera compatibility | CXP-12 connector industrial camera |
| Number of cameras | Max 4 cameras |
| Operating system | Windows 10/11/Server 2019(x64) |
| Host bus standard | PCIe 3.0 (Gen 3) X8 |
| Delivery bandwidth | 6700MB/s(Sustained delivery bandwidth) |
| Transfer rate | 1.25/2.5/3.125/5/6.25/10/12.5Gbps（CXP-1/2/3/5/6/10/12） |
| Storage humidity | 10% ~ 90%RH ,non-condensing |
| I/o lines | On Board IO： 4X Opto-isolated Input (DIN) Extend IO： 4X Opto-isolated Input (DIN) 2X Opto-isolated Output (DOUT) 2X TTL input/ouput |
| Pixel format | Mono 8/10/12/16 Bayer 8/10/12/16 RGB 8/10/12/16 YCbCr 8/10/12/16 |
| On board memory | 2GB DDR4-2400 |
