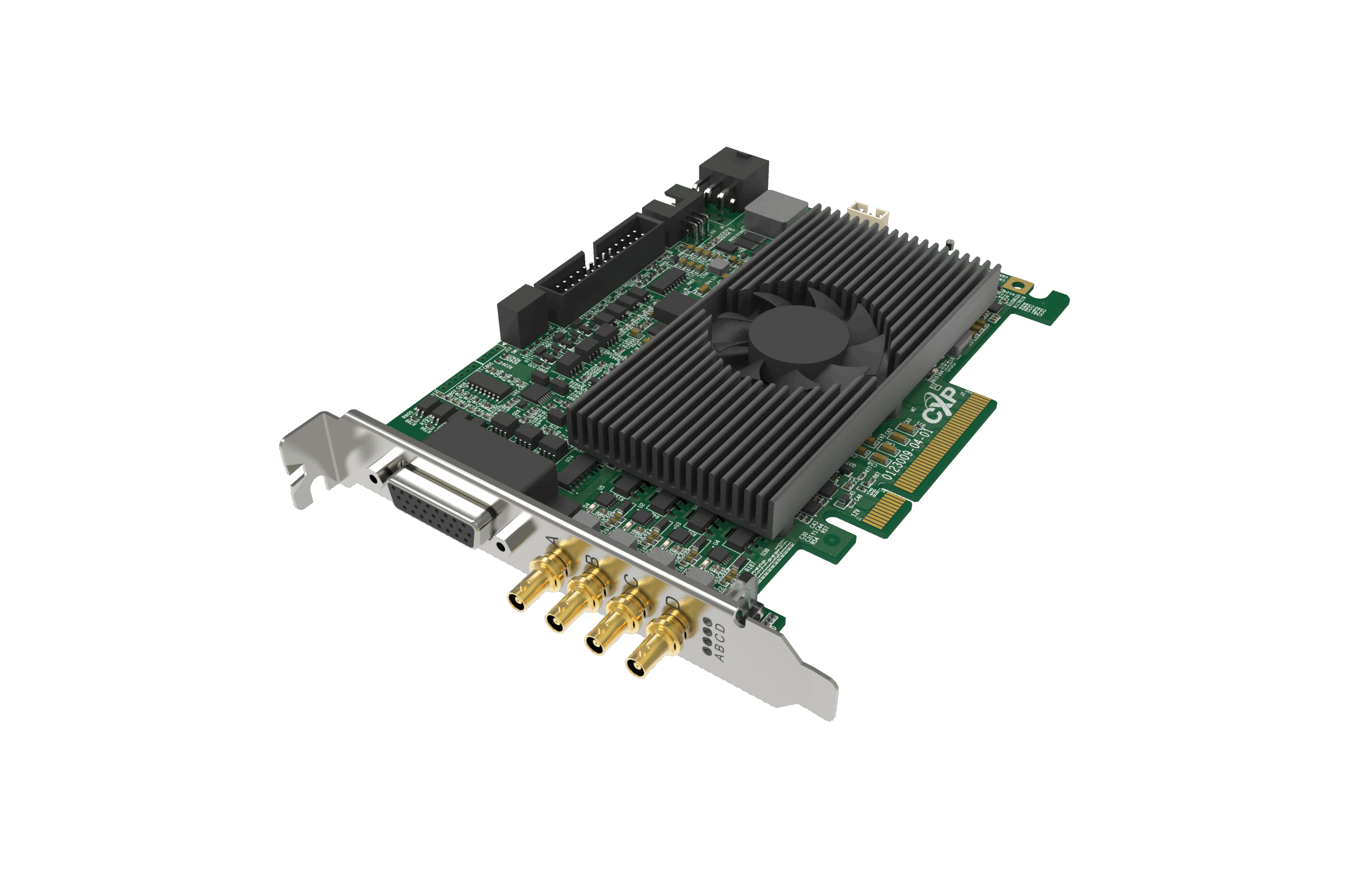

Description
- Supports a maximum connection of 4 cameras to a single card
- Supports the CoaXPress 1.1/2.0 protocol standard
- Supports up to 6700MB/s bus bandwidth with the full-height PCIe card and PCIe Gen 3 x8 interface

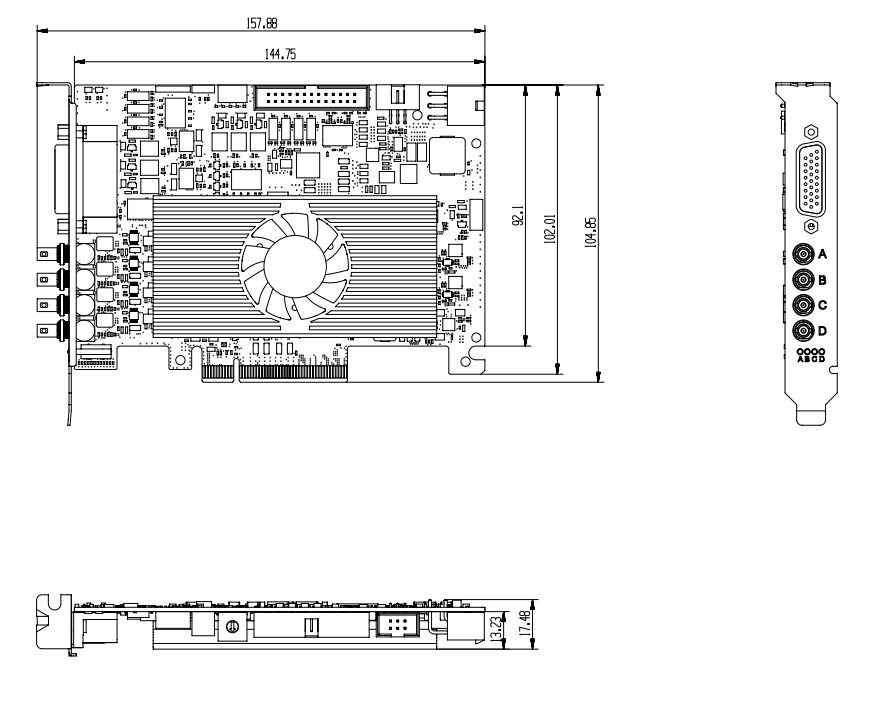

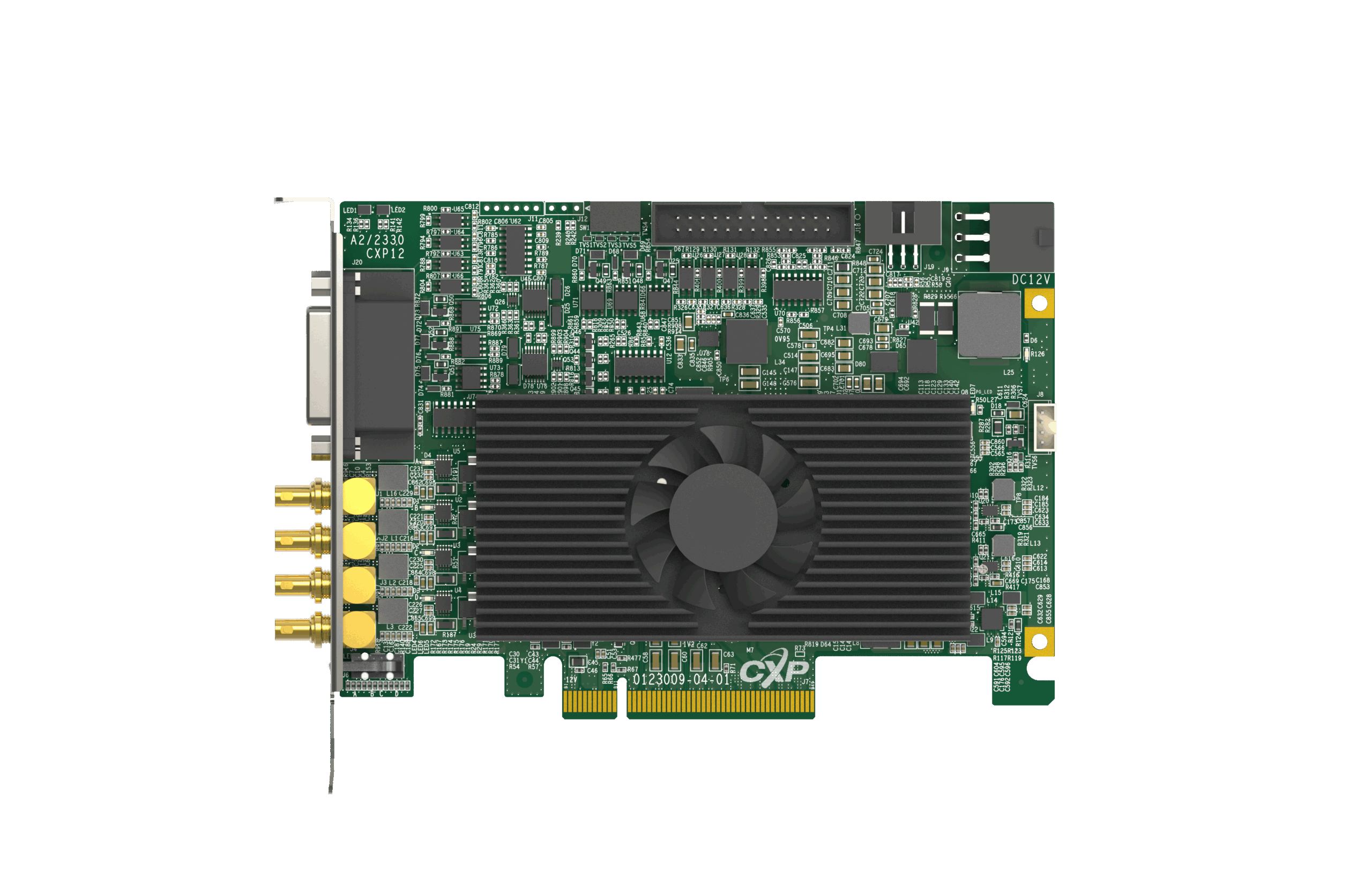

Dimensions
GX3-12HD41E
| Protocol | CoaXPress 1.1/2.0 |
| Type | CXP-12 |
| Model | GX3-12D41E |
| Number of Channels | 4 Channels |
| Pixel Format | Mono8/10/12 BayerGR8/10/12 BayerRG8/10/12 BayerGB8/10/12 BayerBG8/10/12 RGB8 |
| On-board Memory | 4 x 4Gb DDR4-2400 frame buffers (2 GB) |
| Camera Compatibility | Supports Aera-scan cameras and Line-scan cameras Supports Grayscale cameras and color cameras (YCbCr, YUV, RGB and Bayer CFA) Tap supports 1X-1Y, 1X-1Y2, 1X-2YE |
| Number of Cameras | Max 4 cameras |
| Software | Mv Viewer |
| Operating System | Windows 10/11 |
| Power Supply | PCIE power supply: The frame grabber is powered by PCIE; External power supply: The on-board 6 Pin PEG connector must be connected when powering the camera with the POCXP, provide a total power of up to 64W. |
| Power Consumption | 20W |
| Product Dimensions | 144.8mm x 104.9mm |
| Net Weight | 212.6g |
| Host Bus Standard | PCIe Gen 3 x8 interface, compatible with PCIe Gen 2/1 and x4, x2, x1 |
| Delivery bandwidth | 6700MB/s |
| Interface | 4x 75? Micro-BNC connectors |
| I/O Lines | 1* DB26 Female Connector (26-pin 3-row high-density female sub-D connector)? 4 differential opto-isolated inputs (IIN), with the max. frequency of 50kHz 4 differential high-speed inputs (DIN), with the max. frequency of 5MHz 3 differential opto-isolated outputs (IOUT), with the max. frequency of 100kHz 2 single-ended TTL/LVTTL inputs/outputs, with the max. frequency of 5MHz 12V and GND |
| Indicator Light | 4 full-color LED indicators, indicating the status of the corresponding Micro-BNC connectors according to CXP specifications |
| Transfer Rate | 1.25/2.5/3.125/5/6.25/10/12.5Gbps?CXP-1/2/3/5/6/10/12? |
| Operating Temperature | 0~60? |
| Storage Temperature | -15~85? |
| Operating Humidity | 10% ~ 90%RH ,non-condensing |
| Storage Humidity | 10% ~ 90%RH ,non-condensing |
Additional information
| Interface | 4x 75Ω Micro-BNC connectors |
|---|---|
| Operating humidity | 10% ~ 90%RH ,non-condensing |
| Power consumption | 20W |
| Power supply | |
| Product type | CXP-12 |
| Software | Mv Viewer |
| Storage temperature | -15~85℃ |
| Number of channels | 4 channels |
| Protocol | CoaXPress 1.1/2.0 |
| Camera compatibility | Supports Aera-scan cameras and Line-scan cameras Supports Grayscale cameras and color cameras (YCbCr, YUV, RGB and Bayer CFA) Tap supports 1X-1Y, 1X-1Y2, 1X-2YE |
| Number of cameras | Max 4 cameras |
| Operating system | Windows 10/11 |
| Host bus standard | PCIe Gen 3 x8 interface, compatible with PCIe Gen 2/1 and x4, x2, x1 |
| Delivery bandwidth | 6700MB/s |
| Transfer rate | 1.25/2.5/3.125/5/6.25/10/12.5Gbps（CXP-1/2/3/5/6/10/12） |
| Storage humidity | 10% ~ 90%RH ,non-condensing |
| I/o lines | |
| Pixel format | Mono8/10/12 BayerGR8/10/12 BayerRG8/10/12 BayerGB8/10/12 BayerBG8/10/12 RGB8 |
| On board memory | 4 x 4Gb DDR4-2400 frame buffers (2 GB) |
