Machine vision in focus
| Series | MH-M Series |

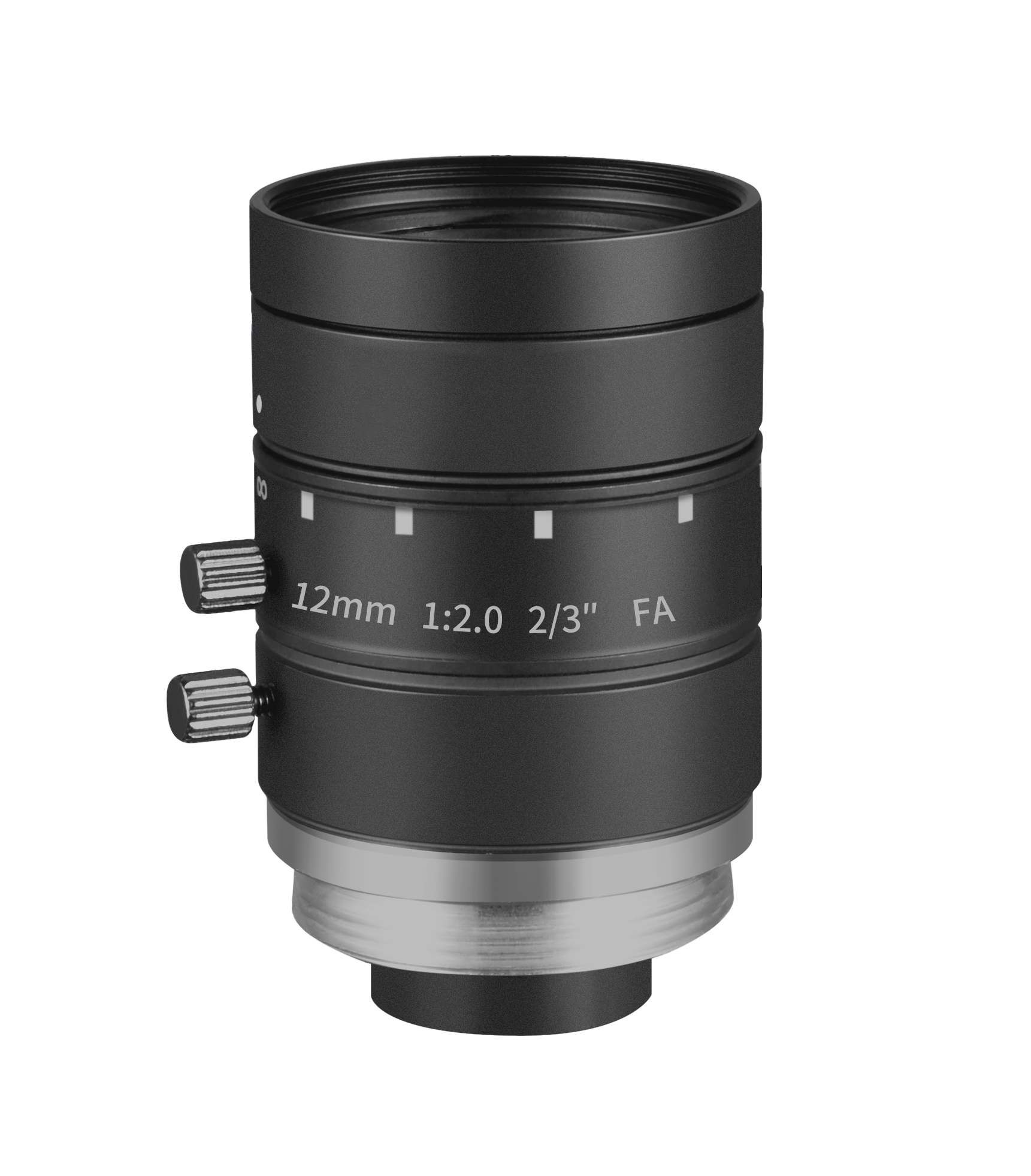

| Model | MHR1220M |
| Focal Length | 12mm |
| Aperture | F2.0 – F16 |
| Image Sensor Size | Ф11.4mm(2/3″) |
| Focus Range | 0.15m to infinite |
| Optical Distortion | -0.02% |
| TV Distortion | -0.01% |
| Field of View | 48.8°x38.4°x32.5°(11mmx8.5mmx7.12mm) |
| Relative Illumination | 60% (F2.0); 95% (F4.0) |
| CRA（Chief Ray Angle) | 11° |
| Spectral Range | 436nm~656nm |
| Spectral Transmission | T>85% |
| Camera Mount | C Mount |
| Filter Thread | M27xP0.5 |
| Focus Control | Manual |
| Iris Control | Manual |
| Product Dimensions | 37.65mm×Ф29mm |
| Net Weight | 61 g |
| Operating Temperature | -20°C to ~50°C |
| Field of view | 48.8°x38.4°x32.5°(11mmx8.5mmx7.12mm) |
|---|---|
| Focus control | Manual |
| Cra (chief ray angle) | 11° |
