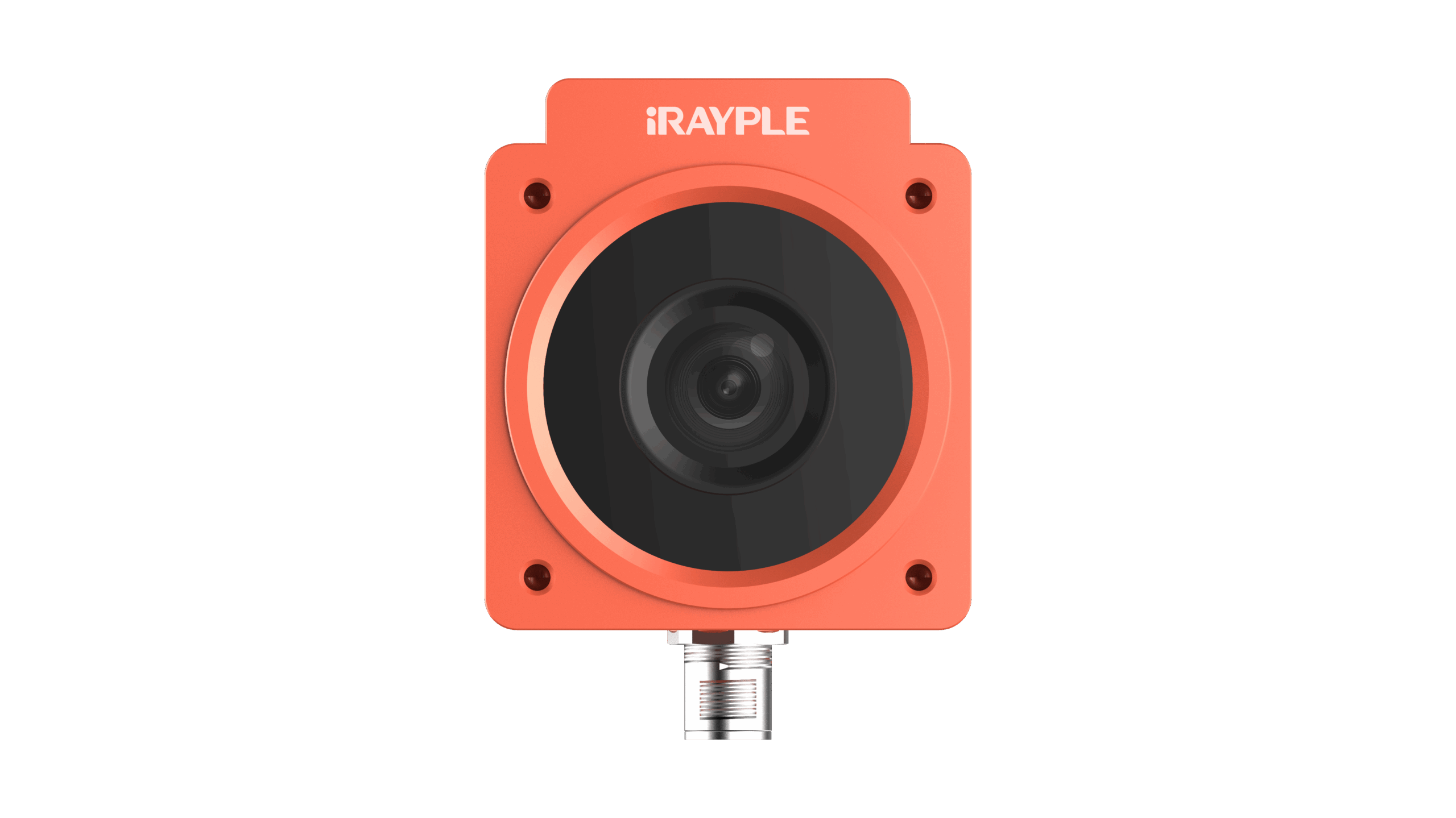

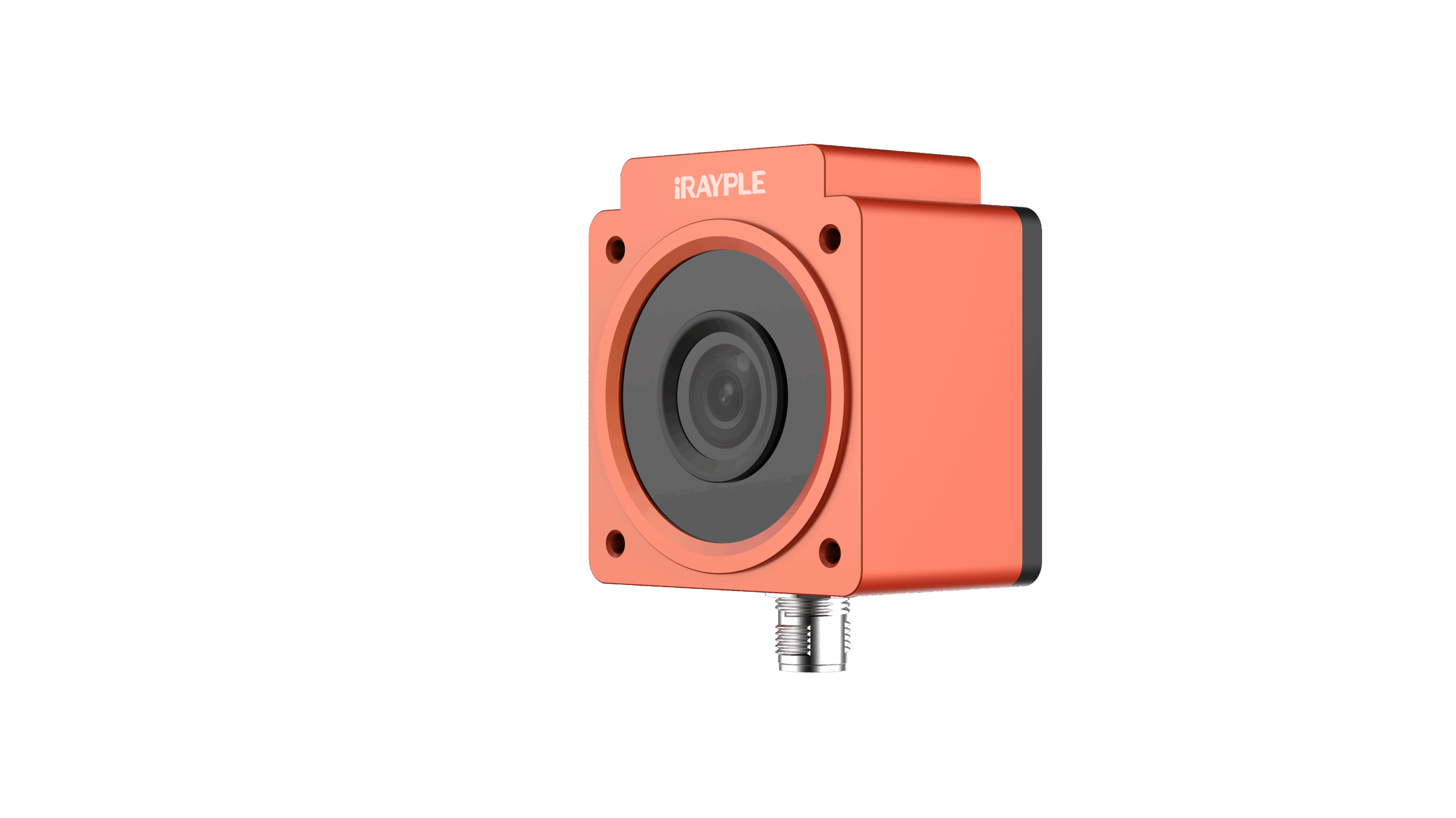

R3138MG010E

Max. Frame rate	120 fps
Shutter Mode	Global
Mono/Color	Mono
Lens Mount	M12
Trigger Mode	Single Frame trigger/Software trigger/Free run mode
Software	SVStudio
Certifications	CE, FCC, KC
Function	DM-12&DM-14, DM4x4
Focal Length	3.37 mm
Working Distance	100 mm
Field of View (FOV)	110 mm × 93 mm
Max. Read Speed	125 code/s
Max. Operating Speed	3 m/s
Focus Control	Stationarytype
Light Source Type	WhiteLed
Depth of Field (DoF)	±20mm
Angular Accuracy	0.1°
Displacement Accuracy	0.1mm
Connector	1eaM12connector
Network Port	100M Ethernet
GPIO Interface	1 opto-isolated input, 1 opto-isolated output
Communication Mode	100MEthernet、RS485
Communication protocol	SDK, Serial, TCPServer, TCPClient
LED Indicator	5LEDindicator, SYS、NET、Triggerand2user-definedLED
Power Supply	DC24V±10%
Power Consumption	Disableillumination:<3.5W@24VDC Enableillumination:<7.5w@24VDC
Product Dimensions	60mm×60mm×43mm(Excludedinterfaceport)
Packaging Dimensions	164 mm × 122 mm × 91 mm
Net Weight	<225 g
Gross Weight	<350 g
Protection	IP65
Casing Material	aluminum alloy
Operating Temperature	-20℃～+50℃
Operating Humidity	20%～95%, No condensation
Storage Temperature	-30℃～+80℃

Description

High performance decode algorithm, can be applied when DM code is under condition of dirty/defect/low contrast during operation.
Embedded decode algorithm. High speed/accuracy.
Support DM-12&DM-14 and DM code array.
Embedded aviation plug, abundant IO interfaces.
5-way indicator for debug and camera status monitoring.
Support multiple userSet parameter save/load/switch.
Apply M12 FA lens, supports locating DM code in large FOV.

Connector	1eaM12connector
Field of view	110 mm x 93 mm
Focus control	Stationarytype
Gpio interface	1 opto-isolated input，1 opto-isolated output
Lens mount	M12
Power consumption	Disableillumination:<3.5W@24VDC Enableillumination:<7.5w@24VDC
Power supply	DC24V+/-10%
Storage temperature	-30℃~+80℃
Trigger mode	Single Frame trigger/Software trigger/Free run mode
Working distance	100 mm
Mono-color	Mono
Max. frame rate	120 fps
Shutter mode	Global
Software	SVStudio
Certifications	CE，FCC，KC
Function	DM-12&DM-14，DM4x4
Light source type	WhiteLed
Max. read speed	125 code/s
Max. operating speed	3 m/s
Network port	100M Ethernet
Communication mode	100MEthernet、RS485
Communication protocol	SDK，Serial，TCPServer，TCPClient
Led indicator	5LEDindicator，SYS、NET、Triggerand2user-definedLED
Protection	IP65
Casing material	aluminum alloy
Operating humidity	20%~95%，No condensation
Depth of field (dof)	+/-20mm
Packaging dimensions	164 mm x 122 mm x 91 mm
Gross weight	<350 g
Angular accuracy	0.1°
Displacement accuracy	0.1mm
