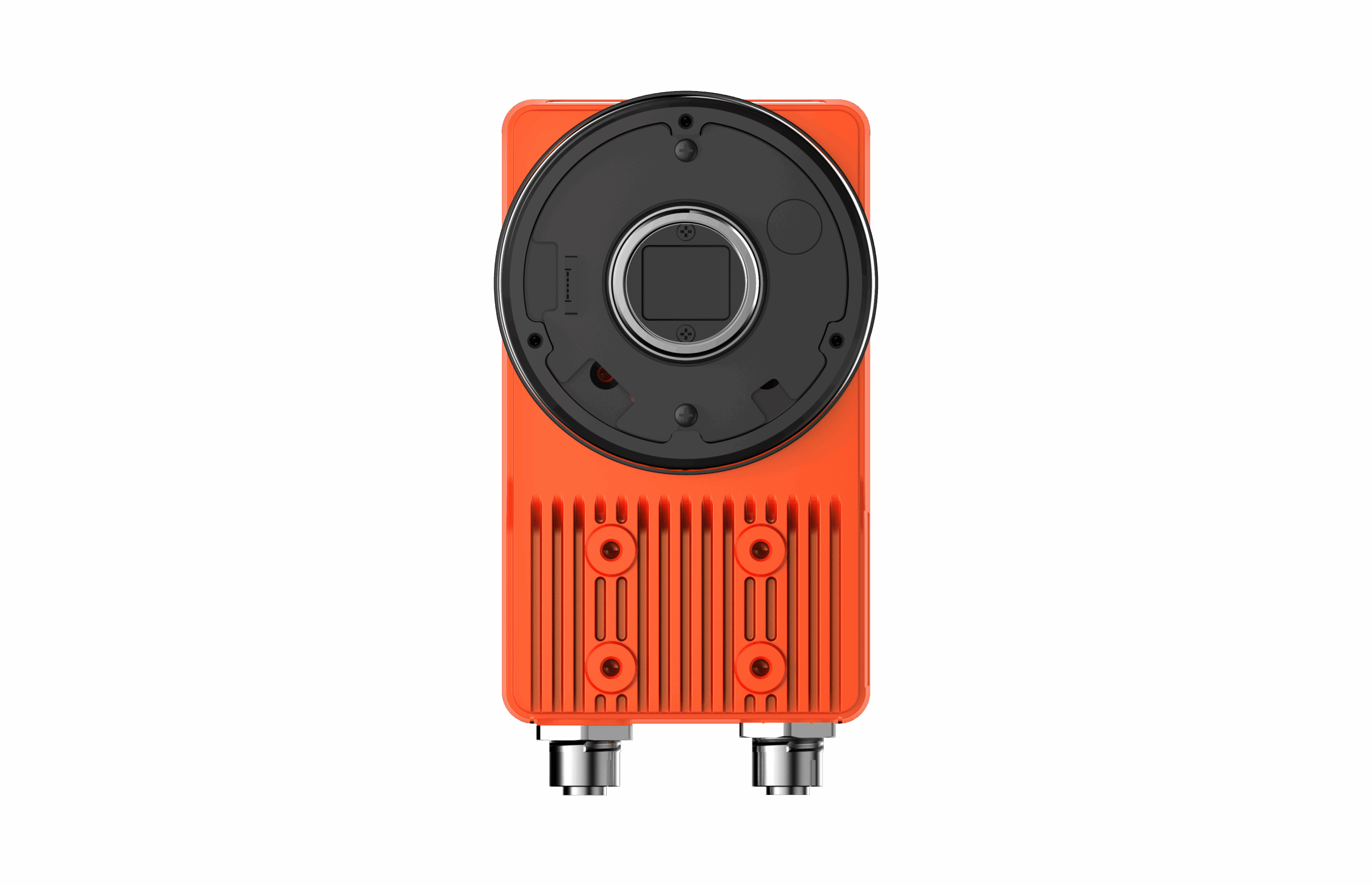

Machine vision in focus
| Resolution | 5120 × 3840 |
| Max. Frame rate | 15 fps |
| Sensor Type | 1″, CMOS |
| Shutter Mode | Global |
| Pixel Size | 2.5 μm × 2.5 μm |
| Lens Mount | C-MOUNT |
| Trigger Mode | Software trigger/External trigger/Free run modes |
| Software | EasyID |
| Certifications | CE, KC |
| Function | lD: Code 39, Code 93, Code 128, CodaBar, EAN8, EAN13, UPCA, UPCE, ITF25, 2of5（Industrial 2of5）, standard25, GS1-128 etc. and 2D: QR/DM/MQR/GS1 DM/GS1 QR; Quality Evaluation: 1S0/IEC 29158(AIM-DPM), 1S0/IEC 15415, 1S0/IEC 15416 |
| Max. Read Speed | 90 codes/s |
| Connector | 2 Industrial connectors support GigE and GPIO |
| Network Port | Code-A,GigE |
| GPIO Interface | 12Pins GPIO, RS232, 2 Opto-isolated inputs and 3 Opto-isolated outputs |
| Communication Mode | RS232, Ethernet |
| Communication protocol | SDK, TCP Client, FTP, TCP Server, RS232, Profinet、Modbus、EtherNet/IP、MCUdp、MCTcp、FinsUDP、FinsTCP、MELSEC |
| LED Indicator | Power,Ethernet,Trigger |
| Power Supply | 24VDC, 1A input, suitable for industrial environment |
| Power Consumption | <8.0W@DC24V (light not included) |
| Product Dimensions | 117 mm × 69 mm × 43 mm(lens mount & connector not included) |
| Net Weight | ＜550 g |
| Protection | IP67 (with lens cover) |
| Casing Material | Aluminum alloy |
| Operating Temperature | -20℃～+50℃ |
| Operating Humidity | 20%～95%, no condensation |
| Storage Temperature | -30℃～+70℃ |
Smart_Code_Reader(7000_Series)_user_s_Manual_V1.2.1_20231115.pdf
| Connector | 2 Industrial connectors support GigE and GPIO |
|---|---|
| Gpio interface | 12Pins GPIO，RS232, 2 Opto-isolated inputs and 3 Opto-isolated outputs |
| Lens mount | C-mount |
| Pixel size | 2.5 um x 2.5 um |
| Power consumption | <8.0W@DC24V (light not included) |
| Power supply | 24VDC, 1A input, suitable for industrial environment |
| Resolution | 5120 x 3840 |
| Sensor type | 1"，CMOS |
| Storage temperature | -30℃~+70℃ |
| Trigger mode | Software trigger/External trigger/Free run modes |
| Max. frame rate | 15 fps |
| Shutter mode | Global |
| Software | EasyID |
| Certifications | CE，KC |
| Function | |
| Max. read speed | 90 codes/s |
| Network port | Code-A,GigE |
| Communication mode | RS232, Ethernet |
| Communication protocol | SDK，TCP Client，FTP，TCP Server，RS232，Profinet、Modbus、EtherNet/IP、MCUdp、MCTcp、FinsUDP、FinsTCP、MELSEC |
| Led indicator | Power,Ethernet,Trigger |
| Protection | IP67 (with lens cover) |
| Casing material | aluminum alloy |
| Operating humidity | 20%~95%, no condensation |
