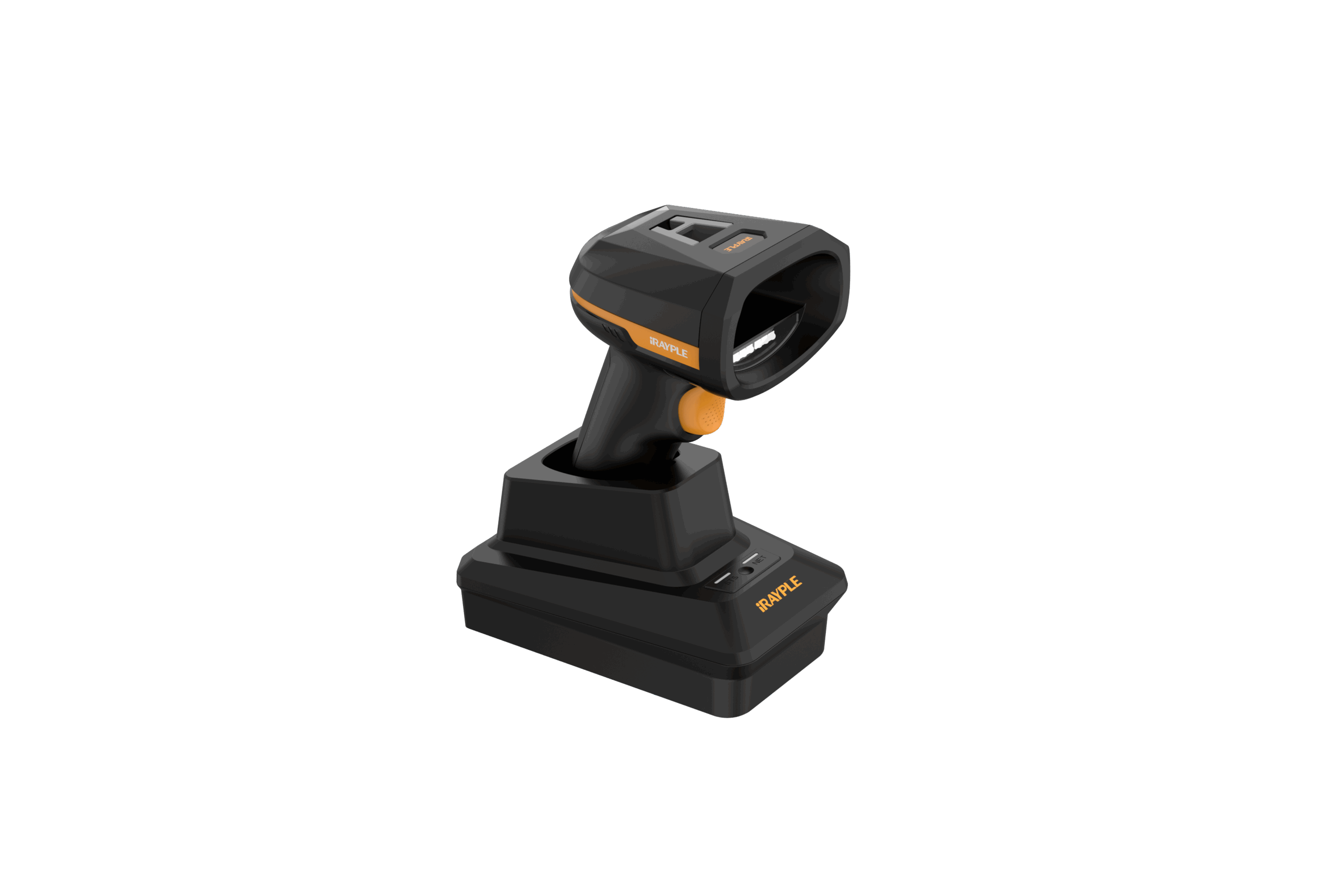

RS3013MB-05-MGGN1E

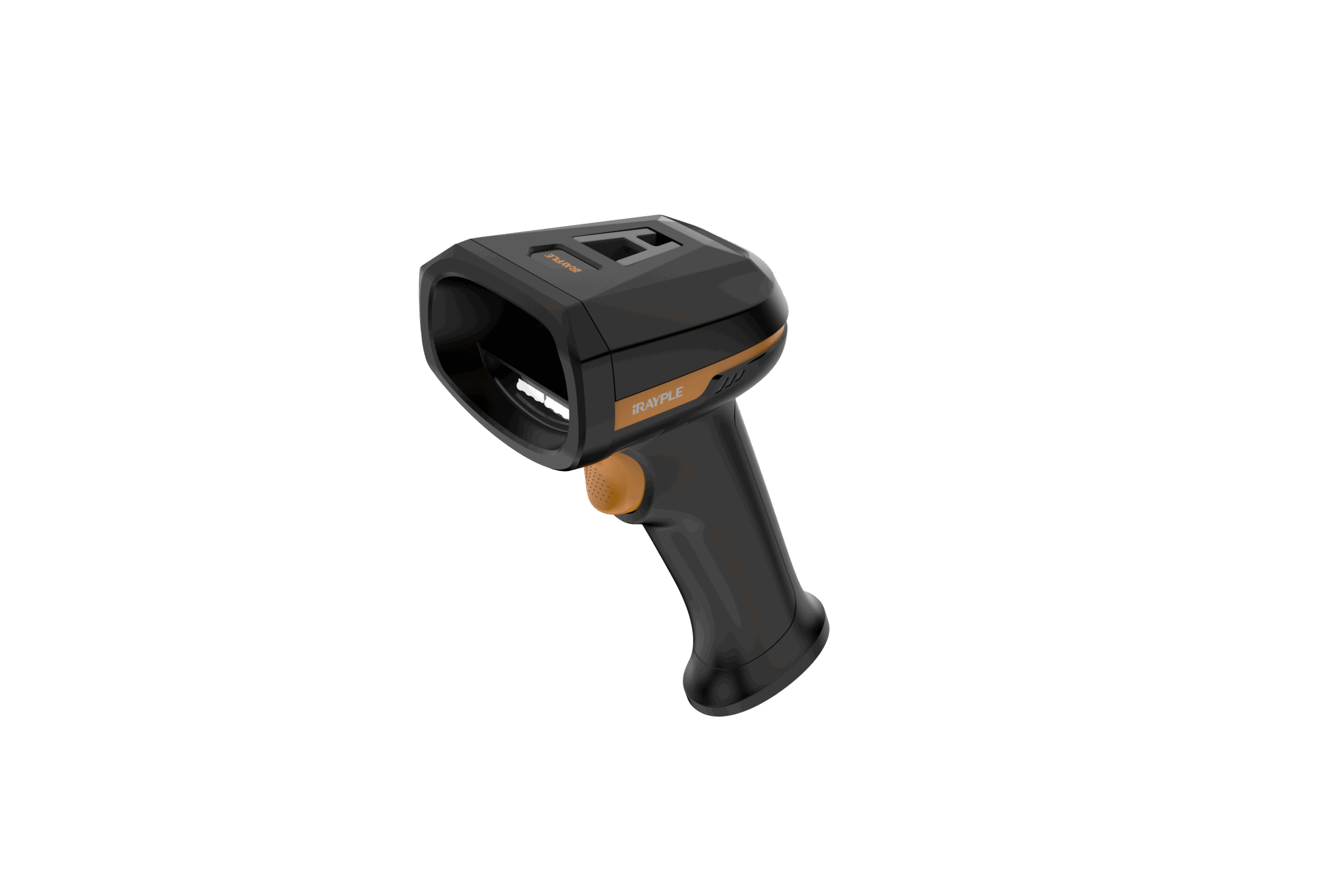

RS3013MB-05-MGGN1E - Image 2
RS3013MB-05-MGGN1E - Image 3

RS3013MB-05-MGGN1E

Resolution 1280×1024
Max. Frame rate 50fps
Scanning System Key push scan, Auto sensing scan
Software EasyID
Certifications CE,KC
Function 1D：Code 39, Code 93, Code 128, ITF 14/25, CodaBar, EAN8, EAN13, UPCA, UPCE、Pharmacode; 2D：QR Code, Data Matrix、Micro QR、QR Model1、PDF417
Light Source Type Red/white/blue three-color integrated light
Min. Resolution 3mil
Depth of Field (DoF) 1D： Code128（3 mil）：35 ~ 80 mm Code128（10 mil）：10~ 200 mm Code39（5 mil）：15~ 100 mm Code39（20mil）：0~ 250 mm 2D： QR Code（5mil）：30 ~ 70 mm QR Code（20mil）：10 ~ 240 mm Data Matrix（10 mil）：5~ 115 mm
Field of View Horizontal 43°, vertical 36°
Detection angle Tilt angle ± 60°, skew angle ± 60°, rotation angle 360°
Print contrast 0.15
Sight Red cross laser aiming
Prompt method Buzzer. LED indicator, Vibrator
Bluetooth wireless range 80 m (open range)
Bluetooth BT 5.0, BLE
LED Indicator Buzzer. LED indicator, Vibrator
Product Dimensions 89 mm × 78 mm × 180 mm
Net Weight Approx.280g (Without base)
Ingress Protection IP54
Drop Test Height 1.8m
Operating Temperature -20°C～50°C
Operating Humidity 20% RH to 80% RH (no condensation)
Storage Temperature -20℃~+60℃
Battery Capacity 3250mAh
Charging Time Shutdown mode: DC12V~24 V(12V, 2A):3.5 h
Operating Time 13 h (interval scanning, once in 2 seconds)
Connector Fast Ethernet (100 Mbit/s), USB2.0, RS-232, DC terminal
Communication protocol SmartSDK, TCP Client, Serial, FTP, HTTP, TCP Server, Profinet, MELSEC, Ethernet/IP, ModBus, Fins, USB(HID), RS-232, Bluetooth
Power Supply DC 12～24V
Charging Time 3.5 h
Charging Current 0.7A (maximum current); 0.06 A (standby current)
Product Dimensions 137 mm × 106 mm × 81 mm
Net Weight Approx. 310g
Ingress Protection IP40
Operating Humidity 20% RH to 80% RH (no condensation)
Operating Temperature -20°C～50°C
Storage Temperature -20℃~+60℃
Charging Temperature 0～40°C
Add to Quote
Category: Tag: Brand:

Description

  • Highly efficient AI algorithm ensures excellent code reading performance in complex scenarios
  • Integrated three-color(Red/White/Blue) illumination, actively switches to the optimal light source
  • High frame rate CMOS image sensor with 1280*1024 resolution enables high accuracy and fast scanning
  • Ergonomic and Reliable mechanical design makes operation comfortable and durable in industrial environment
  • Intelligent tuning tool provides optimal settings for Direct Part Mark(DPM) code reading
  • Adopting Bluetooth 5.0 Wireless technology, freeing from the constraints of cables, enabling more efficient and convenient operation
  • With the smart communication and charging dock, it can connect to EasyID for parameter configuration and device management

Dimensions

Downloads

Wireless%C2%A0Handheld%C2%A0Code%C2%A0Reader%C2%A0(RS3000%C2%A0Series)_user%C2%A0Manual_V1.0.1.pdf

Additional information

Connector

Fast Ethernet (100 Mbit/s), usB2.0, RS-232, DC terminal
Field of view

Horizontal 43°, vertical 36°
Power supply

DC 12~24V
Resolution

1280×1024
Storage temperature

-20℃~+60℃
Max. frame rate

50fps
Software

EasyID
Certifications

CE，KC
Function

1D：Code 39, Code 93, Code 128, ITF 14/25, CodaBar, EAN8, EAN13, UPCA, UPCE、Pharmacode; 2D：QR Code, Data Matrix、Micro QR、QR Model1、PDF417
Light source type

Red/white/blue three-color integrated light
Min. resolution

3mil
Sight

Red cross laser aiming
Communication protocol

SmartSDK, TCP Client, Serial, FTP, HTTP, TCP Server, Profinet, MELSEC, Ethernet/IP, ModBus, Fins, usB(HID), RS-232, Bluetooth
Led indicator

Buzzer. LED indicator, Vibrator
Operating humidity

20% RH to 80% RH (no condensation)
Scanning system

Key push scan, Auto sensing scan
Depth of field (dof)

1D： Code128（3 mil）：35 ~ 80 mm Code128（10 mil）：10~ 200 mm Code39（5 mil）：15~ 100 mm Code39（20mil）：0~ 250 mm 2D： QR Code（5mil）：30 ~ 70 mm QR Code（20mil）：10 ~ 240 mm Data Matrix（10 mil）：5~ 115 mm
Detection angle

Tilt angle +/- 60°, skew angle +/- 60°, rotation angle 360°
Print contrast

0.15
Prompt method

Buzzer. LED indicator, Vibrator
Bluetooth wireless range

80 m (open range)
Bluetooth

BT 5.0, BLE
Ingress protection

IP40
Drop test height

1.8m
Battery capacity

3250mAh
Charging time

3.5 h
Operating time

13 h (interval scanning, once in 2 seconds)
Charging current

0.7A (maximum current); 0.06 A (standby current)
Charging temperature

0~40°C
