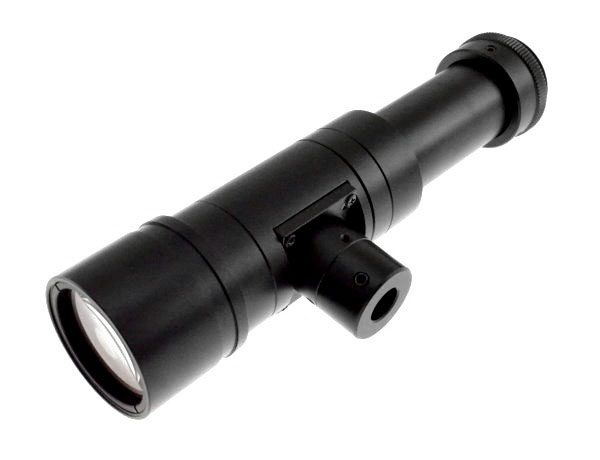

RT-MP-1F-65

RT-MP-1F-65

Specification Value
Magnification 1.000 (x)
Image circle diameter 16.0 (mm)
Max sensor size 1″
1/2.5″ 5.70 x 4.28 (mm x mm)
1/1.8″ 7.13 x 5.33 (mm x mm)
2/3″ 8.50 x 7.09 (mm x mm)
1″ 14.19 x 7.51 (mm x mm)
1.1″ 14.16 x 10.37 (mm x mm)
Working distance 65.5 (mm)
Working f/N 8
Distortion < 0.22 (%)
Depth of field 0.30 (mm)
Resolution 5.3 (μm)
Mount C
Phase adjustment Yes
Length 133.1 (mm)
Front diameter 32.0 (mm)
Mass 185 (g)
Add to Quote
Category: Tag: Brand:

Description

  1. Working distance: distance between the front end of the mechanics and the object. Set this distance within ±3% of the nominal value for maximum resolution and minimum distortion.
  2. Working f-number (wf/N): the real f-number of a lens in operating conditions.
  3. Measured from the front end of the mechanics to the camera flange.

Additional information

Lens mount

C
Resolution

5.3 (μm)
Color
Accessory developer

Opto
Distortion

< 0.22 (%)
Front diameter

32.0 (mm)
Length

133.1 (mm)
Image circle diameter

16.0 (mm)
1 1

14.16 x 10.37 (mm x mm)
Mass

185 (g)
Phase adjustment

Yes
Depth of field

0.30 (mm)
Working f/N

8
Working distance

65.5 (mm)
Zoom ratio

1.000 (x)
Operation power source
Optmag

1.000 (x)
Sensor size
