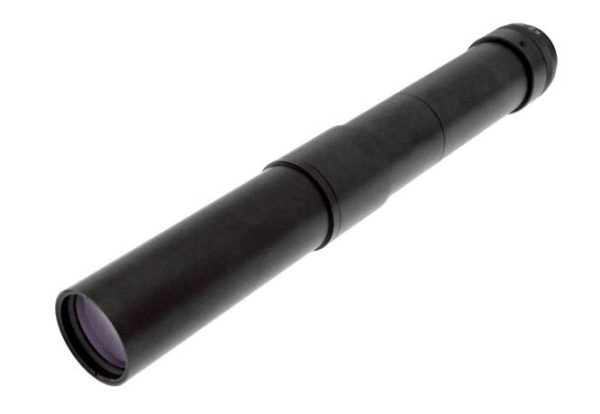

RT-TV-1M-400

RT-TV-1M-400

Specification Value
Magnification 1.000 (x)
Image circle diameter 8.9 (mm)
Max sensor size 1/1.8″
1/3″ 4.80 x 3.60 (mm x mm)
1/2.5″ 5.70 x 4.28 (mm x mm)
1/2″ 6.40 x 4.80 (mm x mm)
1/1.8″ 7.13 x 5.33 (mm x mm)
Working distance 400.0 (mm)
Working f/N 25.0
Distortion < 0.31 (%)
Depth of field 1.70 (mm)
Resolution 16.8 (μm)
Mount C
Phase adjustment Yes
Length 161.8 (mm)
Front diameter 34.0 (mm)
Mass 400 (g)
Add to Quote
Category: Tag: Brand:

Description

  1. Working distance: distance between the front end of the mechanics and the object. Set this distance within ±3% of the nominal value for maximum resolution and minimum distortion.
  2. Working f-number (wf/N): the real f-number of a lens in operating conditions.
  3. Measured from the front end of the mechanics to the camera flange.

Additional information

Lens mount

C
Length

161.8 (mm)
Operation power source
Color
Accessory developer

Opto
Distortion

< 0.31 (%)
Front diameter

34.0 (mm)
Image circle diameter

8.9 (mm)
Resolution

16.8 (μm)
Mass

400 (g)
Phase adjustment

Yes
Depth of field

1.70 (mm)
Working f/N

25
Working distance

400.0 (mm)
Zoom ratio

1.000 (x)
Optmag

1.000 (x)
Sensor size
