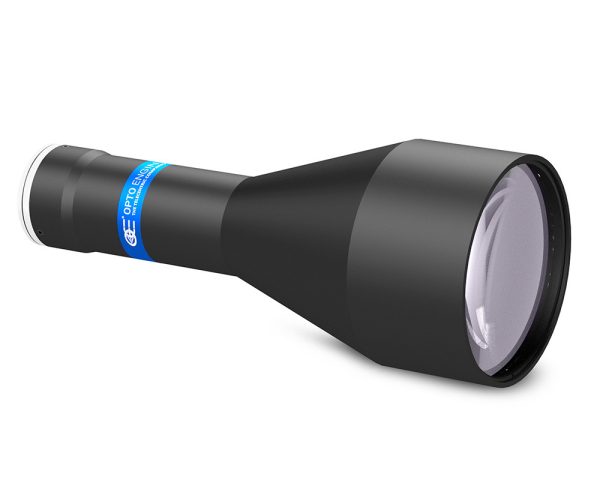

TCLWD030-180-3M
Specification |
Value |
Magnification |
0.300 (x) |
Image circle diameter |
17.6 (mm) |
Max sensor size |
1.1″ |
1/2.5″ |
19.00 x 14.27 (mm x mm) |
1/1.8″ |
23.77 x 17.77 (mm x mm) |
2/3″ |
28.33 x 23.63 (mm x mm) |
1″ |
47.30 x 25.03 (mm x mm) |
1.1″ |
47.20 x 34.57 (mm x mm) |
Working distance |
179 (mm) |
Working f/N |
8 |
Telecentricity |
< 0.25 (deg) |
Distortion |
< 0.15 (%) |
Depth of field |
4.60 (mm) |
Resolution |
17 (μm) |
Mount |
C |
Phase adjustment |
Yes |
Length |
205 (mm) |
Front diameter |
82 (mm) |
Mass |
642 (g) |
